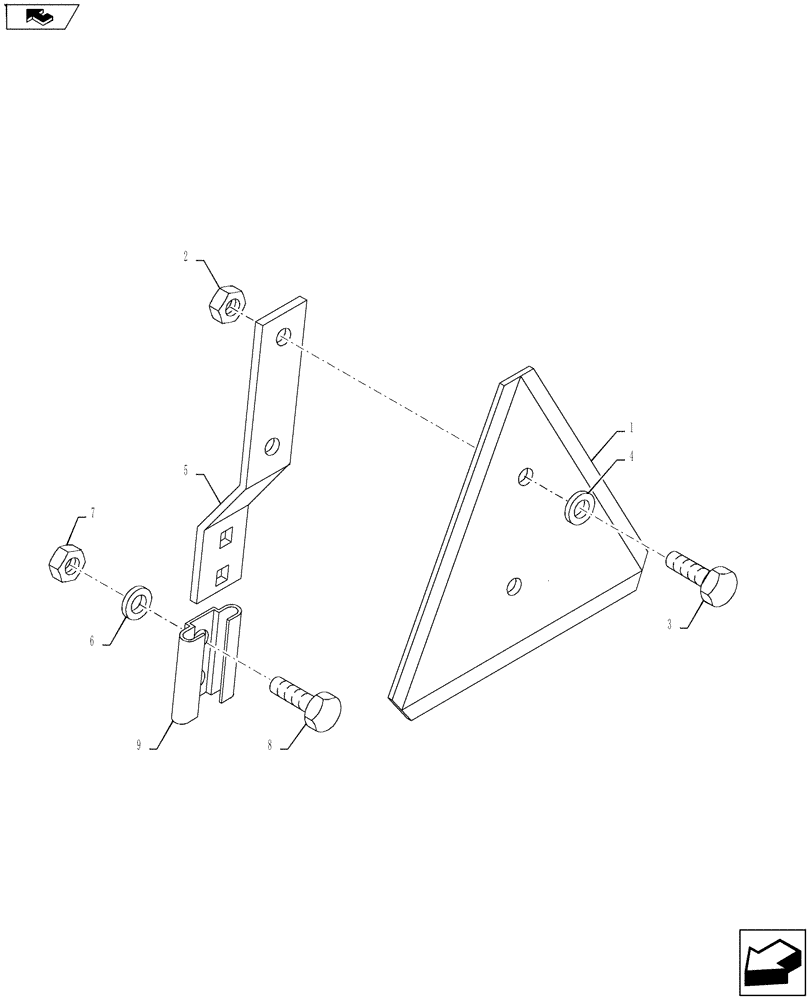

Запчасти Case IH FARMALL 45A (90.108.03) - SLOW VEHICLE SYMBOL (90) - PLATFORM, CAB, BODYWORK AND DECALS

1

87308105

WARNING TRIANGLE

1шт.

2

353308

NUT,M6 x 1.0, Cl 8

Alternate Part

2шт.

82824279

1шт.

3

9804255

BOLT,Hex, M6 x 1 x 16mm, Full Thd, Cl 8.8

Alternate Part

2шт.

10902321

1шт.

4

12646601

WASHER,6.15mm ID x 15mm OD x 1.5mm Thk

2шт.

5

195035

SUPPORT

1шт.

6

322358

BELLEVILLE WASHER,M8 Bolt Size x 18mm OD x 1.4mm Thk

Alternate Part

4шт.

10571779

1шт.

7

9804277

FLANGE NUT,Hex, M8 x 1.25, Cl 8

Alternate Part

2шт.

16100811

1шт.

8

9804258

BOLT,Hex, M8 x 1.25 x 20mm, Cl 8.8

Alternate Part

2шт.

16043421

1шт.

9

847590

BRACKET

1шт.
