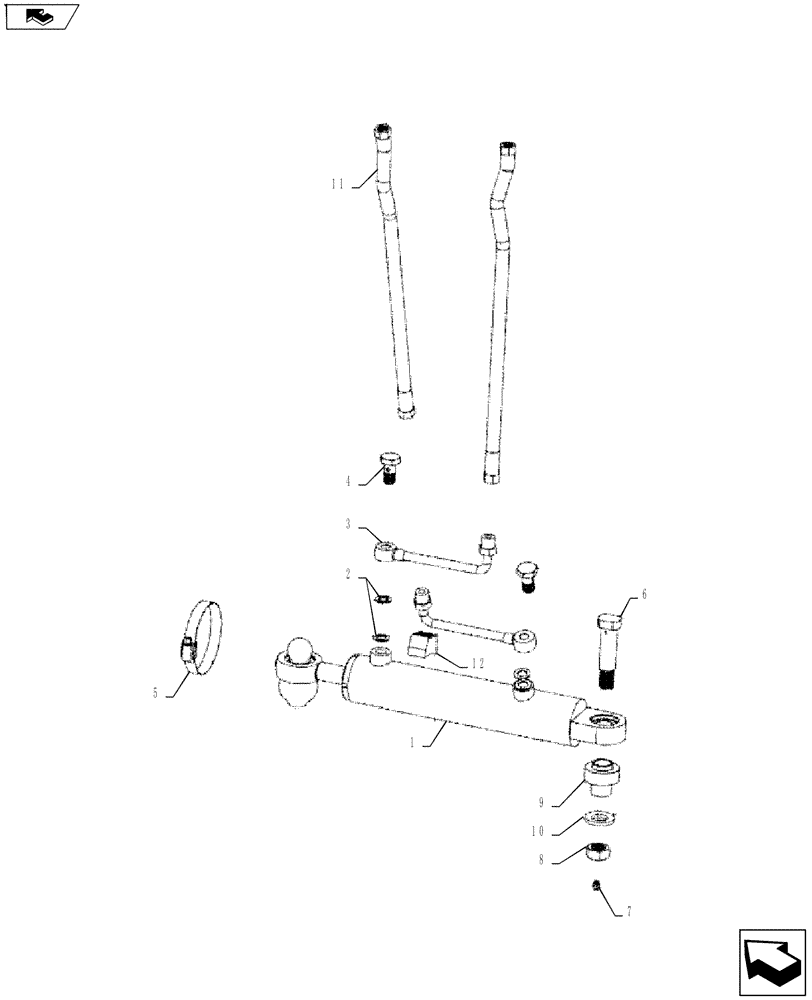

Запчасти Case IH FARMALL 45A (41.200.01[01]) - STEERING CYLINDER HOSES - 2WD (41) - STEERING

1

82826965

SERVO STEERING CYL

1шт.

2

10280060

SEAL,M14.2 x 20 x 1.5

4шт.

3

82827010

RIGID TUBE,8 mm ID, 10 mm OD, 150, 40 mm Length

2шт.

4

10184311

BANJO BOLT,M14 x 1.5 x 27mm

M14 x 1.5

2шт.

5

13000990

COLLAR,60mm - 80mm, Worm Gear

60 x 80

1шт.

6

4997697

PIN,20mm OD x 80mm L

D20 x 80

1шт.

7

82824207

LUBE NIPPLE

1/4" x 28

1шт.

8

12576011

NUT,Hex, M18 x 1.5

M18 x 1.5

1шт.

9

5102972

BUSHING,20mm ID x 42mm OD x 41mm L

Cylinder Pivot

1шт.

10

82827154

BELLEVILLE WASHER,19mm ID x 36mm OD x 3.6mm Thk

Lockwasher, Taper, 18 x 36 x 4.2

1шт.

11

5126507

FLEXIBLE HOSE,8mm ID x 510mm L, SAE 100R2

M16 x 1.5, D8 x 510

2шт.

12

5121043

SPACER

Steering Cylinder Hoses

1шт.
