(90.120.AD[01]) - VAR - 391268 - SEAT, DRIVER SEAT

Запчасти Case IH FARMALL 140A (90.120.AD[01]) - VAR - 391268 - SEAT, DRIVER SEAT (90) - PLATFORM, CAB, BODYWORK AND DECALS

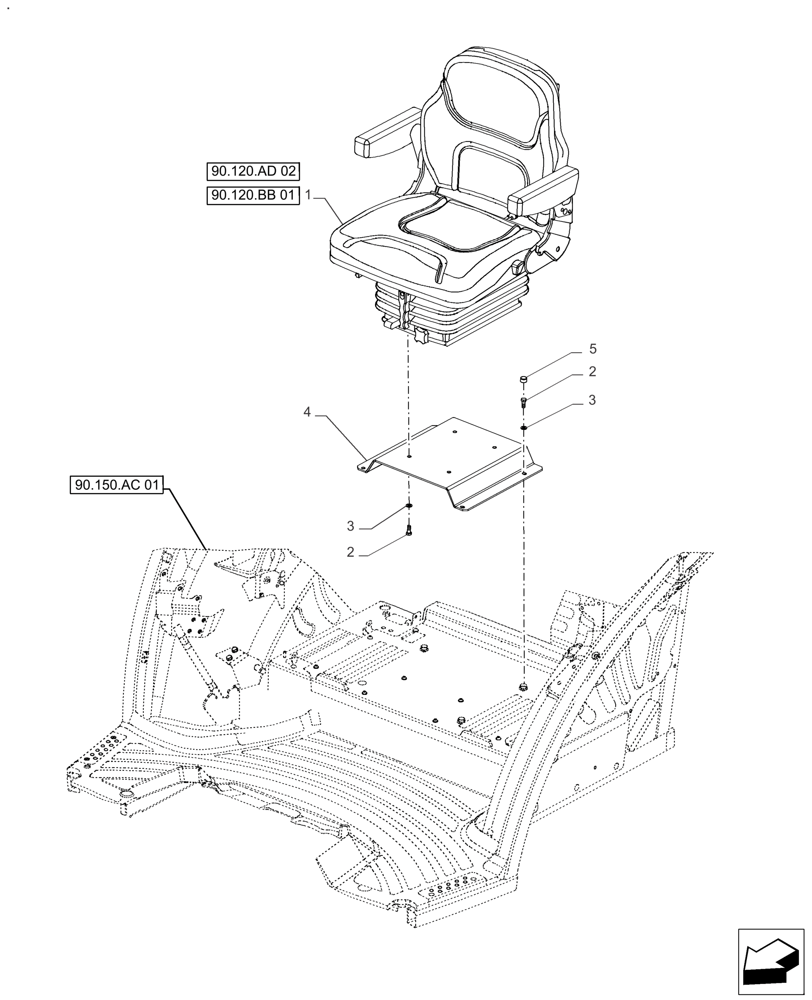

Схема запчастей Case IH FARMALL 140A - (90.120.AD[01]) - VAR - 391268 - SEAT, DRIVER SEAT (90) - PLATFORM, CAB, BODYWORK AND DECALS
90.150.ac 01
2
5
3
2
4
3
1
90.120.ad 02
90.120.bb 01
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

47867129

DRIVER SEAT

CIH Fabric, Mechanical Suspension 33/SM80X

1шт.

2

43233

BOLT,Hex, M8 x 1.25 x 20mm, Full Thd, Cl 10.9

8шт.

3

86511315

WASHER,8.4mm ID x 16mm OD x 1.8mm Thk

8шт.

4

47598146

SUPPORT

Mechanical Seat

1шт.

5

47841878

Cover

4шт.
