Запчасти Case IH FARMALL 140A (88.100.90[08]) - VAR - 718173, 718180, 439152, 439153 - DIA KIT, MID MOUNT VALVE KIT, LOADER (88) - ACCESSORIES

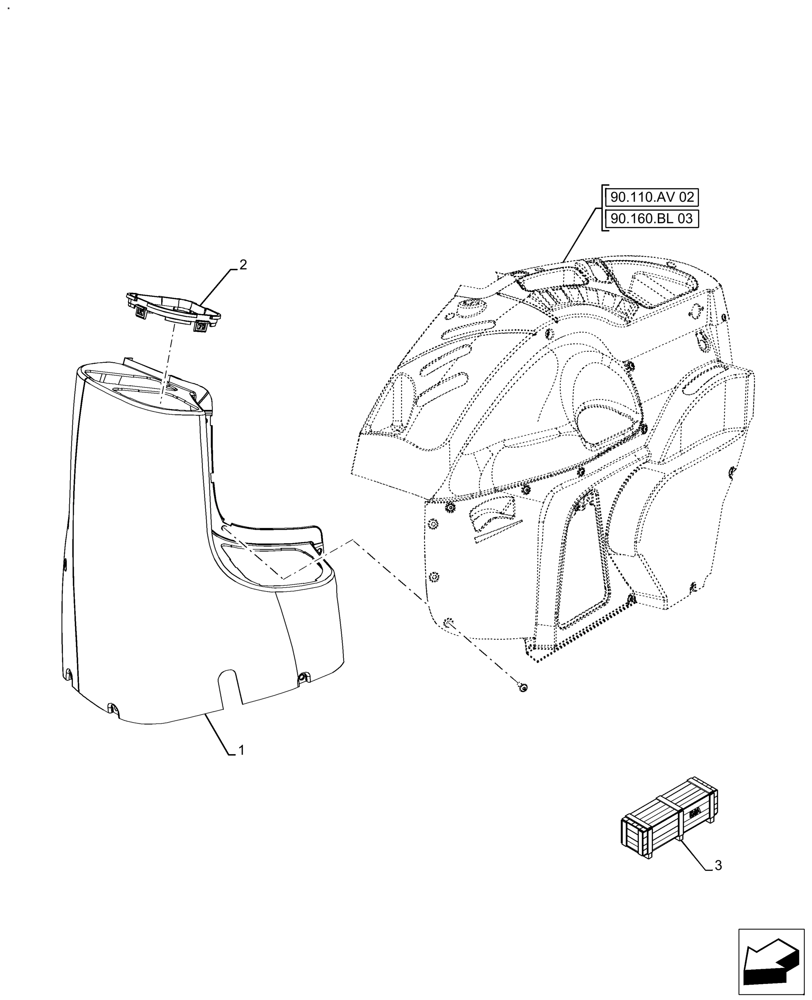

Схема запчастей Case IH FARMALL 140A - (88.100.90[08]) - VAR - 718173, 718180, 439152, 439153 - DIA KIT, MID MOUNT VALVE KIT, LOADER (88) - ACCESSORIES
90.160.bl 03
2
1
3
90.110.av 02

Артикул

Название

Примечание

Количество

1

84315023

TRIM

1шт.

2

84370125

INSERT

1шт.

3

47805482

Mid Mount Loader Valve Joystic Cab, Incl 1, 2

1шт.

To See the Full DIA KIT Composition Look for All the Figures Where the DIA KIT P/N is Shown

1шт.

Sohipren

1шт.

3

47805487

Mid Mount Loader Valve Joystic Rops, Incl 1, 2

1шт.

To See the Full DIA KIT Composition Look for All the Figures Where the DIA KIT P/N is Shown

1шт.

Sohipren

1шт.

3

47932553

KIT

Mid Mount Loader Valve Joystic Cab, Incl 1, 2

1шт.

To See the Full DIA KIT Composition Look for All the Figures Where the DIA KIT P/N is Shown

1шт.

Bosch

1шт.

3

47932567

KIT

Mid Mount Loader Valve Joystic Rops, Incl 1, 2

1шт.

To See the Full DIA KIT Composition Look for All the Figures Where the DIA KIT P/N is Shown

1шт.

Bosch

1шт.

Выбрано товаров: 14
