Запчасти Case IH FARMALL 140A (88.100.35[08]) - VAR - 718171 - DIA KIT, FROM 3 DELUXE VALVES TO 4, W/O CAB (88) - ACCESSORIES

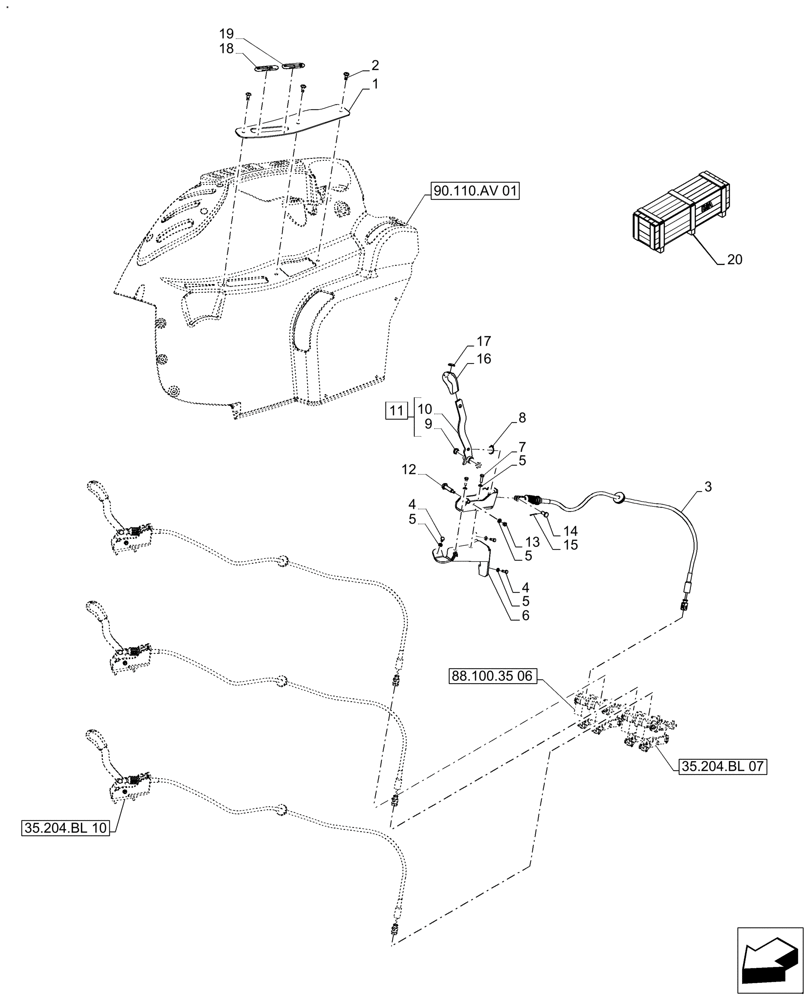

Схема запчастей Case IH FARMALL 140A - (88.100.35[08]) - VAR - 718171 - DIA KIT, FROM 3 DELUXE VALVES TO 4, W/O CAB (88) - ACCESSORIES
35.204.bl 07
5
1
2
4
9
15
5
5
20
16
14
17
10
4
12
11
7
6
13
18
3
8
19
5
88.100.35 06
35.204.bl 10
90.110.av 01

Артикул

Название

Примечание

Количество

1

47644772

COVER

Remote 4 Valves

1шт.

2

1983037

HEX SOC SCREW,Btn Hd Flg, M6 x 16mm, Cl 10.9

3шт.

3

48120757

Assy. Remote Control Valve

CABLE

1шт.

4

86508568

BOLT,Hex, M6 x 1 x 16mm, Cl 8.8

1шт.

5

86517328

LOCK WASHER,6.1mm ID x 11.8mm OD x 1.7mm Thk

6шт.

6

47644768

SUPPORT

Assy. Remote 4 Valve

1шт.

7

120100

BOLT,M6 x 20mm, Cl 8.8

2шт.

8

81865873

CLIP,19.40mm D

Hydraulic Remote Control Valve

1шт.

9

84487137

BUSHING,10mm ID x 12mm OD x 10mm L

2шт.

10

47864993

LEVER

Assy. Remote Valve

1шт.

11

47861016

LEVER

Assy. With Bushing, Incl 9, 10

1шт.

12

84487136

PIN,M6 x 1, 49.5mm L

1шт.

13

86500688

NUT,Hex, M6 x 1.0, Cl 10.9

1шт.

14

385818

CLEVIS PIN,M8 x 20

1шт.

15

81813879

COTTER PIN,1/16" x 3/4"

1шт.

16

47056482

KNOB

1шт.

17

87698517

DATA PLAQUE

Black

1шт.

18

47695898

DECAL

Four Valve Remote Up

1шт.

19

47695823

DECAL

Four Valve Remote Down

1шт.

20

48130933

From 3 Deluxe Valves to 4, Rops, Incl 1 - 19

DIA KIT, TRACTOR

1шт.

To See the Full DIA KIT Composition Look for All the Figures Where the DIA KIT P/N is Shown

1шт.

Выбрано товаров: 21
