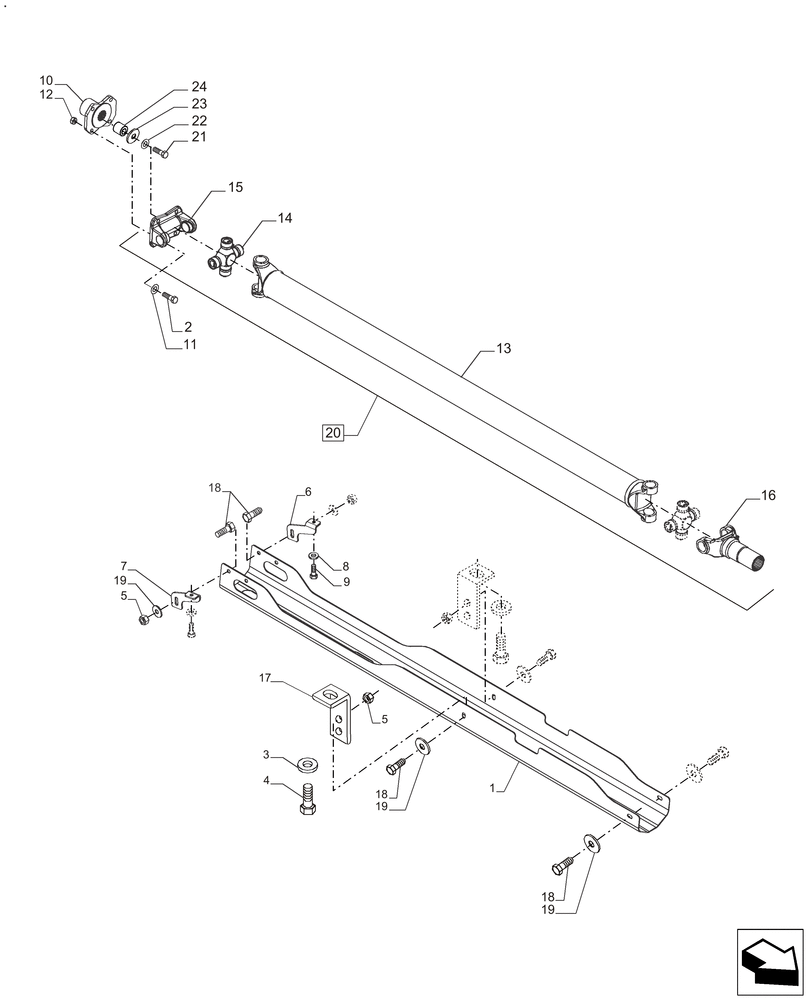

Запчасти Case IH FARMALL 140A (41.101.AF[02]) - DRIVEN SHAFT, 4WD FRONT AXLE - 6 CYL. (41) - STEERING

1

73336713

GUARD

Guard Drive Shaft 6 Cyl.

1шт.

2

43248

BOLT,Hex, M10 x 1.5 x 40mm, Cl 10.9

4шт.

3

86511327

WASHER,21mm ID x 37mm OD x 3mm Thk

2шт.

4

81817784

BOLT,Hex, 3/4" - 10 x 1 1/4", Gr 5

2шт.

5

86500689

NUT,M10 x 1.5, Cl 10

4шт.

6

73338162

SUPPORT

1шт.

7

73338164

SUPPORT

1шт.

8

10571779

LOCK WASHER,Helical Spring, 8.10mm ID x 14.80mm OD x 2.00mm, ZNM

2шт.

9

43127

BOLT,Hex, M8 x 1.25 x 25mm, Cl 8.8

2шт.

10

73337493

FLANGE

1шт.

11

85700672

LOCK WASHER,M10

4шт.

12

82879516

NUT,M10, G8

4шт.

13

82983453

YOKE

1шт.

14

82983452

SPIDER

2шт.

15

82983454

FLANGE

1шт.

16

82983451

YOKE

1шт.

17

82985221

SUPPORT

Guard Drive Shaft

2шт.

18

BER43139

BOLT

6шт.

19

86625253

WASHER,11mm ID x 24mm OD x 2mm Thk

6шт.

20

47874525

DRIVE SHAFT

1шт.

With auxilliary pump configuration use also 47887140, 47887154, 47887184, 47919037

1шт.

21

120122

BOLT,Hex, M12 x 1.75 x 50mm, Cl 8.8

1шт.

22

10517074

LOCK WASHER,12.2mm ID x 21.1mm OD x 3.1mm Thk

1шт.

23

86624147

WASHER,0.53" ID x 1.5" OD x 0.12" Thk

1шт.

24

47866475

BUSHING

Bushing

1шт.
