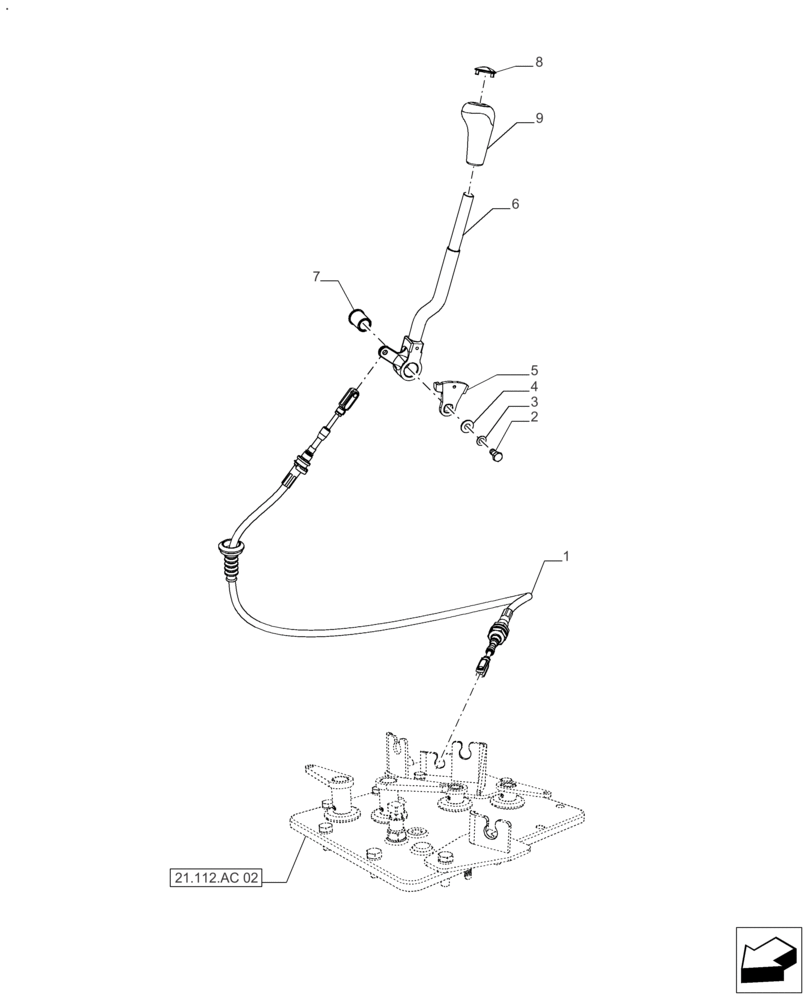

Запчасти Case IH FARMALL 130A (90.160.BL[04]) - VAR - 390340, 330059, 330061 - LEVER HI-LOW (90) - PLATFORM, CAB, BODYWORK AND DECALS

1

47691320

CABLE

Assy. Range

1шт.

2

120103

BOLT,M8 x 1.25 x 16mm, Cl 8.8

1шт.

3

10571779

LOCK WASHER,Helical Spring, 8.10mm ID x 14.80mm OD x 2.00mm, ZNM

1шт.

4

86625263

WASHER,9mm ID x 20mm OD x 1.6mm Thk

1шт.

5

47680205

PLATE

Lock

1шт.

6

47657945

LEVER

Control, Range

1шт.

7

84403894

BUSHING,16mm ID x 22.03mm OD x 29.5mm L

1шт.

8

84210484

SYMBOL

1шт.

9

84210474

KNOB

1шт.
