Запчасти Case IH FARMALL 130A (90.160.BL[03]) - VAR - 330196 - CAB INTERIOR TRIM, JOYSTICK (90) - PLATFORM, CAB, BODYWORK AND DECALS

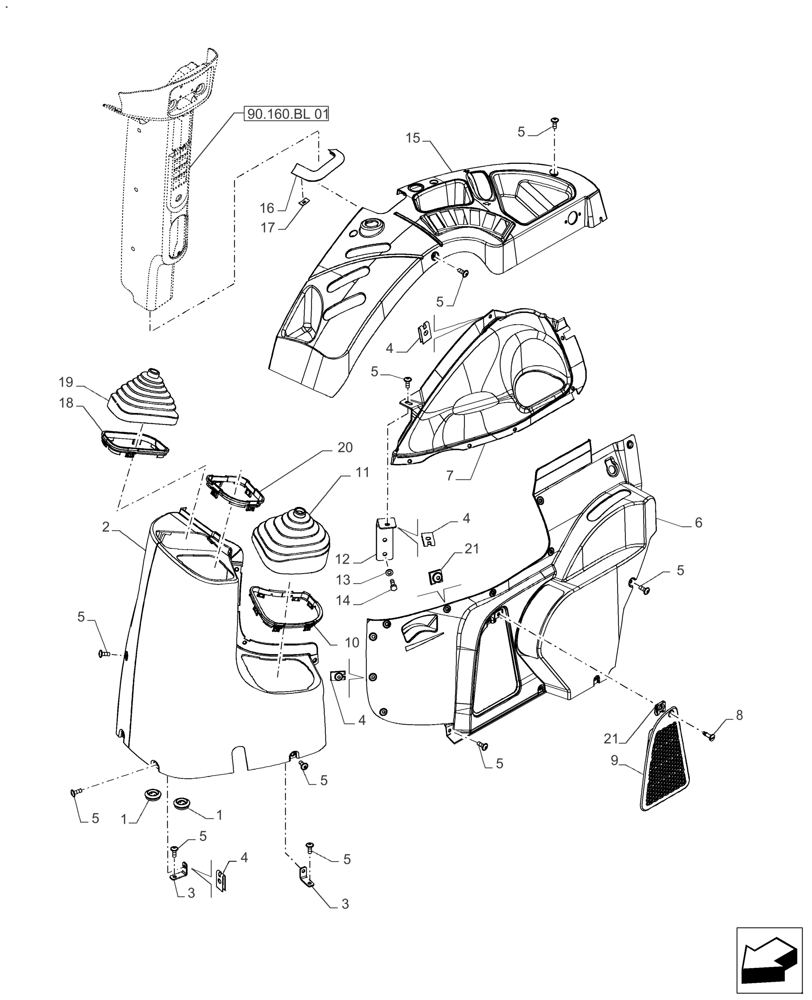

Схема запчастей Case IH FARMALL 130A - (90.160.BL[03]) - VAR - 330196 - CAB INTERIOR TRIM, JOYSTICK (90) - PLATFORM, CAB, BODYWORK AND DECALS
90.160.bl 01
5
5
5
4
11
4
1
17
21
5
9
14
10
5
5
12
3
21
5
19
3
5
4
13
7
8
5
1
20
6
16
18
5
4
15
2

Артикул

Название

Примечание

Количество

1

81862738

PLUG,M38 x 28 x 5mm

2шт.

2

84345031

TRIM PANEL

Panel

2шт.

3

47828005

BRACKET

Trim RH

3шт.

4

14371774

SPRING NUT,M6, U, 12mm long

8шт.

5

1983037

HEX SOC SCREW,Btn Hd Flg, M6 x 16mm, Cl 10.9

28шт.

6

84313884

TRIM PANEL

RH

1шт.

7

84314422

TRIM PANEL

1шт.

8

87597956

SELF-TAP SCREW,Pan Cross Recess Phillips, M6.3 x 1.8 x 22mm

1шт.

9

84314477

FILTER COVER

RH

1шт.

10

47575462

BEZEL

Range Lever With Joistick

1шт.

11

47575454

BOOT,20mm Hole Dia.

1шт.

12

84311409

BRACKET

Threaded

1шт.

13

86639317

WASHER,6.4mm ID x 13mm OD x 2mm Thk

2шт.

14

86980360

BOLT,Hex, M6 x 1 x 20mm, Cl 8.8, Full Thd

2шт.

15

84314992

TRIM

RH, Upper

1шт.

16

84345365

RUBBER SEAL,121.9mm L

RH

1шт.

17

14183474

PUSH-ON NUT,M4, Push

5шт.

18

84370123

COVER

1шт.

19

84370119

BOOT

Leva Joystick

1шт.

20

84370125

INSERT

1шт.

21

14369271

SPRING NUT,U, M6 x 16.20mm x 0.50mm Thk, ZND

6шт.

Выбрано товаров: 21
