Запчасти Case IH FARMALL 130A (90.160.BL[01]) - VAR - 391610, 390819, 334195, 391267, 429472, 429473 - CAB INTERIOR TRIM (90) - PLATFORM, CAB, BODYWORK AND DECALS

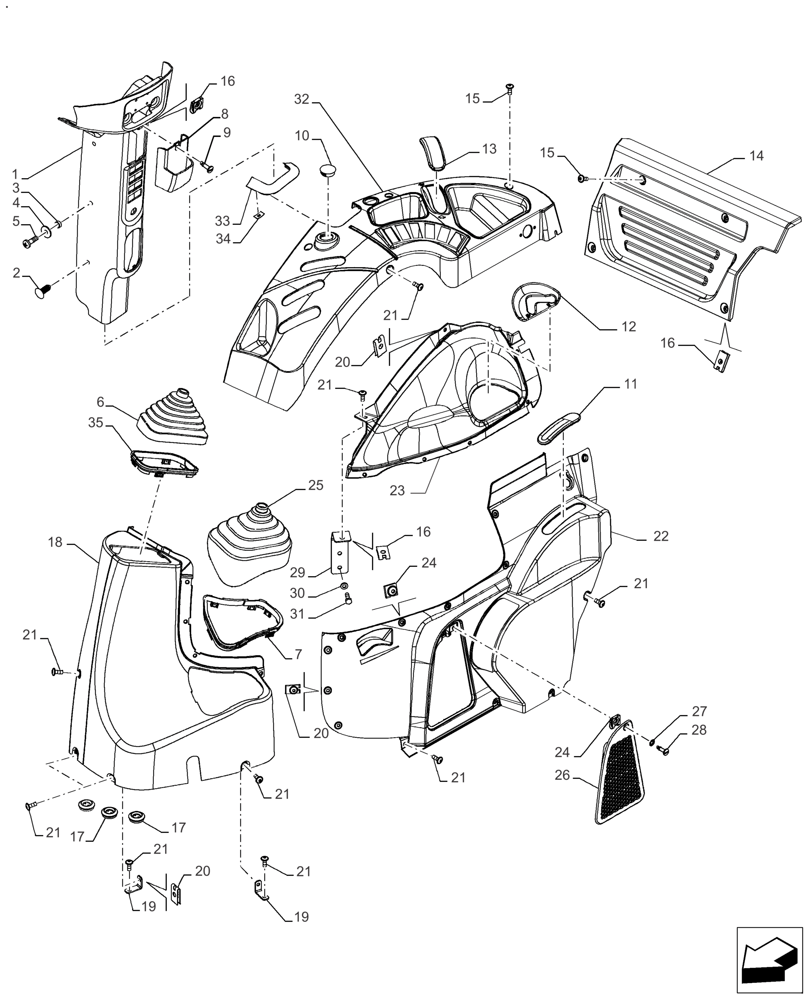

Схема запчастей Case IH FARMALL 130A - (90.160.BL[01]) - VAR - 391610, 390819, 334195, 391267, 429472, 429473 - CAB INTERIOR TRIM (90) - PLATFORM, CAB, BODYWORK AND DECALS
20
21
21
21
21
25
20
20
33
11
21
26
19
19
32
2
5
16
21
23
13
22
9
28
3
21
29
14
4
24
15
21
15
8
31
17
17
6
21
35
10
34
12
27
16
30
18
24
7
16
1

Артикул

Название

Примечание

Количество

1

84314987

TRIM

RH, Pillar

1шт.

2

87648059

STUD,Plastic, NH Grey, 7.8mm x 19.5mmL

Fastener, 7.85 x 19.50

5шт.

3

47406348

SPACER,7mm ID x 9.5mm OD x 3.5mm L

1шт.

4

86639315

WASHER,6.6mm ID x 18mm OD x 1.6mm Thk

1шт.

5

540-719

SCREW,Cross Pan Hd, M6 x 20

1шт.

6

84370119

BOOT

Leva Joystick

1шт.

7

47575459

BEZEL

Range Lever W/O Joystick

1шт.

8

84314472

SUPPORT

I-Phone

1шт.

9

87597956

SELF-TAP SCREW,Pan Cross Recess Phillips, M6.3 x 1.8 x 22mm

1шт.

10

353-422

PLUG,Dome, 1.250" hole, Nylon

1шт.

11

84354390

PLUG,Lapreme black color

1шт.

12

84397042

PLASTIC PLUG

1шт.

13

84354389

PLUG

1шт.

14

84386089

PANEL

Cover Unit

1шт.

15

1983037

HEX SOC SCREW,Btn Hd Flg, M6 x 16mm, Cl 10.9

4шт.

16

14371774

SPRING NUT,M6, U, 12mm long

3шт.

17

81862738

PLUG,M38 x 28 x 5mm

3шт.

18

84315009

TRIM

RH

1шт.

19

47828005

BRACKET

RH

3шт.

20

14371774

SPRING NUT,M6, U, 12mm long

8шт.

21

1983037

HEX SOC SCREW,Btn Hd Flg, M6 x 16mm, Cl 10.9

28шт.

22

84313884

TRIM PANEL

RH

1шт.

23

84314422

TRIM PANEL

Upper

1шт.

24

14369271

SPRING NUT,U, M6 x 16.20mm x 0.50mm Thk, ZND

6шт.

25

47575451

BOOT,20mm Hole Dia.

Range Lever W/O Joystick

1шт.

26

84314477

FILTER COVER

RH

1шт.

27

84354903

THRUST WASHER,10.2mm OD x 1mm Thk

1шт.

28

87597956

SELF-TAP SCREW,Pan Cross Recess Phillips, M6.3 x 1.8 x 22mm

1шт.

29

84311409

BRACKET

Threaded

1шт.

30

86639317

WASHER,6.4mm ID x 13mm OD x 2mm Thk

2шт.

31

86980360

BOLT,Hex, M6 x 1 x 20mm, Cl 8.8, Full Thd

2шт.

32

84314992

TRIM

RH, Upper

1шт.

33

84345365

RUBBER SEAL,121.9mm L

1шт.

34

14183474

PUSH-ON NUT,M4, Push

5шт.

35

84370123

COVER

Gamme

1шт.

Выбрано товаров: 35
