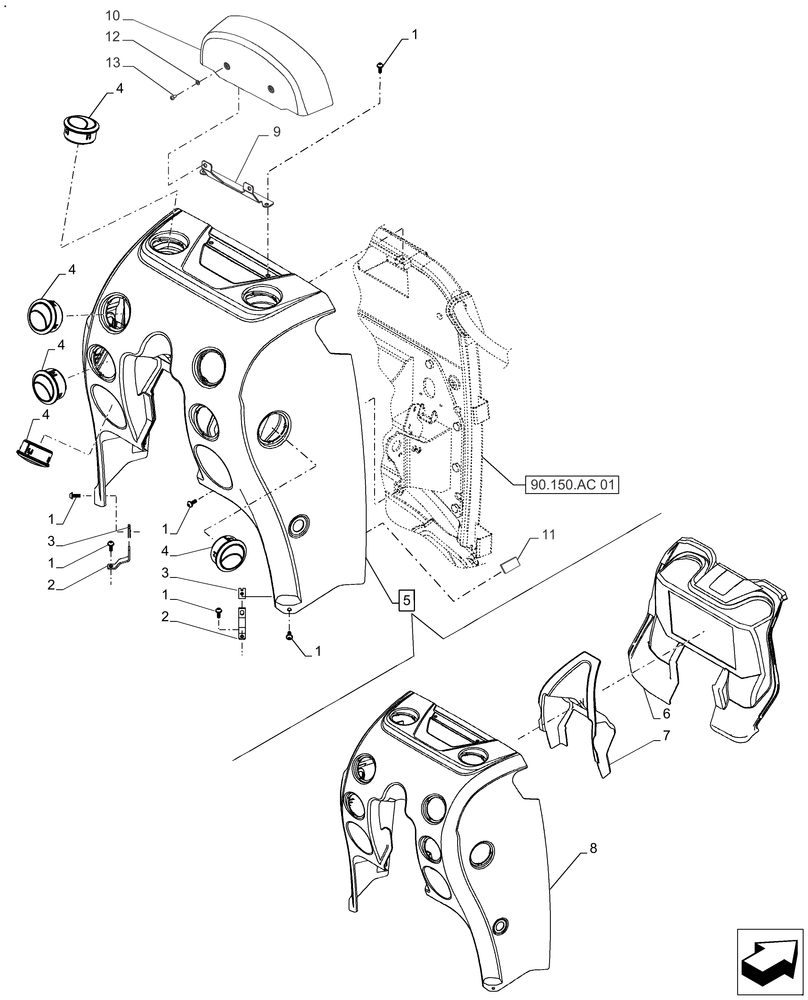

Запчасти Case IH FARMALL 130A (90.160.AO[01]) - VAR - 391610 - CONSOLE, INSTRUMENT PANEL (90) - PLATFORM, CAB, BODYWORK AND DECALS

1

1983037

HEX SOC SCREW,Btn Hd Flg, M6 x 16mm, Cl 10.9

6шт.

2

84336087

BRACKET

2шт.

3

14371774

SPRING NUT,M6, U, 12mm long

2шт.

4

82022331

VENT

Rear Hood

10шт.

5

84312012

INSTRUMENT PANEL

Incl 6 - 8

1шт.

6

84314081

CONVEYOR

RH

1шт.

7

84314071

DEFLECTOR

1шт.

8

84301950

CONSOLE

1шт.

9

84369822

BRACKET

1шт.

10

84314097

COVER

1шт.

11

84285196

FASTENER,25mm x 50mm x 3.77mm Thk

8шт.

12

84160011

WASHER,6.6mm ID x 12.5mm OD x 1.6mm Thk

2шт.

13

84193286

SCREW,Torx Pan Hd, M4 x 10mm, Cl 4.8

2шт.
