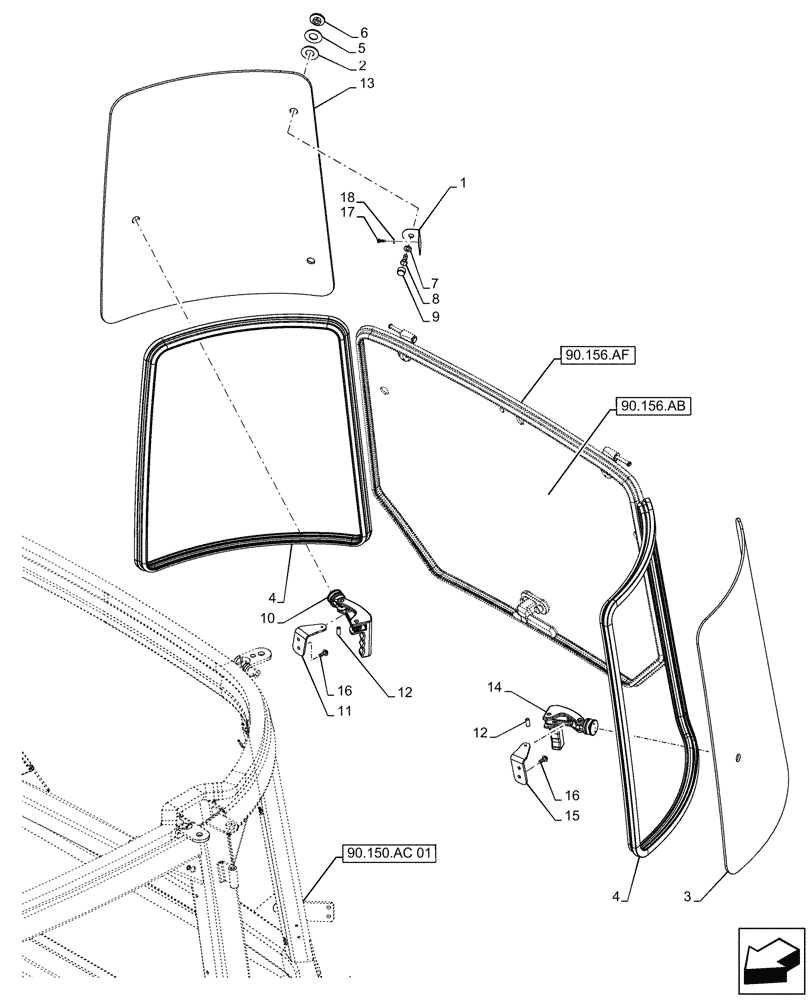

Запчасти Case IH FARMALL 130A (90.156.AI) - VAR - 391610 - GLASS, REAR, RIGHT SIDE, LEFT SIDE (90) - PLATFORM, CAB, BODYWORK AND DECALS

1

48066901

For Side Glasses

HINGE

4шт.

2

47841907

Washer, 32.2mm OD x 8mm ID x 3.9 Thk

4шт.

3

47657928

GLASS

RR, LH

1шт.

4

47582515

SEAL

For Side Glasses

2шт.

5

5094140

WASHER,19mm ID x 39mm OD x 4mm Thk

Plastic

4шт.

6

5094141

NUT,Spheric, M8

Plastic

4шт.

7

10571779

LOCK WASHER,Helical Spring, 8.10mm ID x 14.80mm OD x 2.00mm, ZNM

4шт.

8

120104

BOLT,Hex, M8 x 1.25 x 20mm, Cl 8.8

4шт.

9

47841878

Cover

4шт.

10

84540520

HANDLE

Lock RH, Side Window

1шт.

11

47581112

BRACKET

For Right Window Lock

1шт.

12

85032

ROLL PIN,5mm OD x 16mm L

1шт.

13

47657927

GLASS

RR, RH

1шт.

14

84540524

HANDLE

Lock LH, Side Window

1шт.

15

47582389

BRACKET

For Left Window Lock

1шт.

16

84007540

SCREW,Pozidrive, Pan HD, M6 x 25mm, Cl 4.8

4шт.

17

48080398

Screw, Tapping, 12-24 x 5/8 PAN TT BZN

8шт.

18

84183819

WASHER,0.22" ID x 0.5" OD x 0.05" Thk

8шт.
