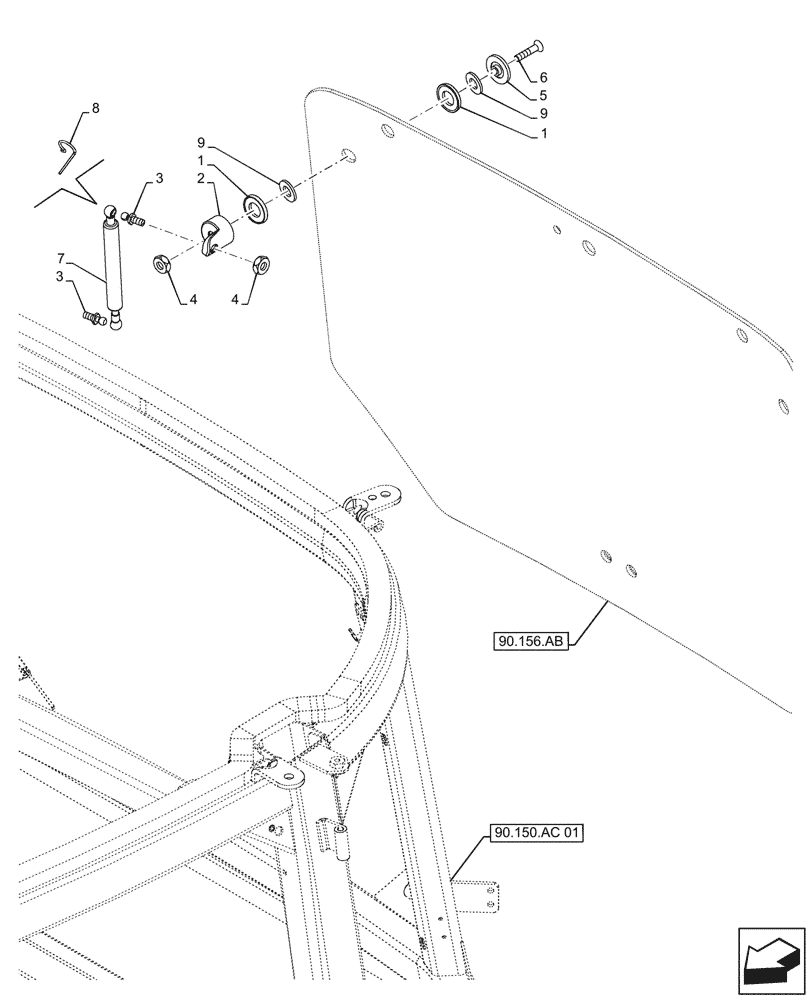

Запчасти Case IH FARMALL 130A (90.156.AE) - VAR - 391610 - WINDOW, REAR, GAS STRUT (90) - PLATFORM, CAB, BODYWORK AND DECALS

1

44910151

GASKET,15mm ID x 39mm OD x 4.5mm Thk

4шт.

2

44910149

ARTICULATION

Stud, Mount Cylinder

2шт.

3

44910148

BALL STUD,M8 x 1.25

4шт.

4

16104417

NUT,M8

Nut, Prev Torque, NON-MTL M8 04 BZN

4шт.

5

44910150

SEALING WASHER,8.5mm ID x 39mm OD x 13mm Thk

2шт.

6

13304117

SCREW,Pozidriv Flat Hd, Csk, M8 x 40mm, Cl 5.8

2шт.

7

84280589

GAS STRUT

2шт.

8

87632795

LOCK

Clip, Spring, DIN 71805-S10

4шт.

9

180361A2

WASHER,18mm ID x 35mm OD x 3mm Thk

4шт.
