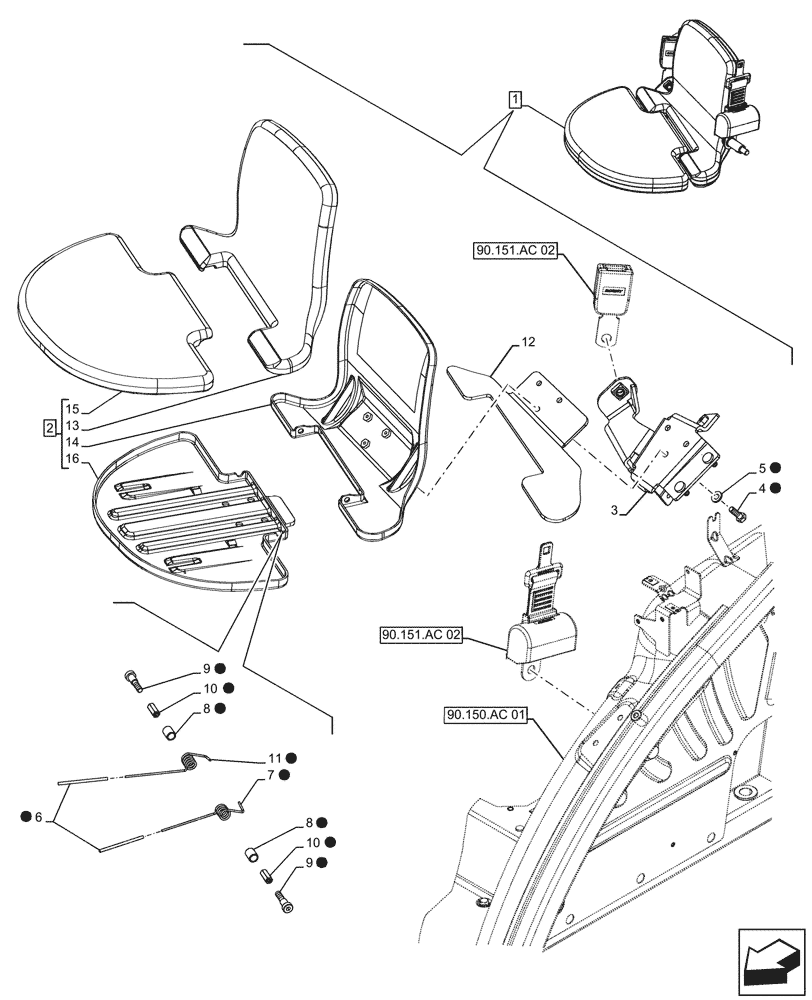

Запчасти Case IH FARMALL 130A (90.151.AC[03]) - VAR - 336937 - PASSENGER SEAT (90) - PLATFORM, CAB, BODYWORK AND DECALS

1

84281902

INSTRUCTIONAL SEAT

Incl 2 - 16

1шт.

2

84309988

INSTRUCTIONAL SEAT

Incl 12 - 16

1шт.

3

84295299

BRACKET

CMP for Support Instructor Seat

1шт.

4

84467669

BOLT,Hex, M8 x 1.25 x 25mm, Cl 8.8

3шт.

5

84467674

WASHER,8.4mm ID x 17.5mm OD x 2.5mm Thk

3шт.

6

84412870

SLEEVE

For Spring

2шт.

7

84412864

SPRING

RH

1шт.

8

84412873

BUSHING

2шт.

9

84412857

HEX SOC SCREW,Hex, M8 x 1.25 x 37mm

2шт.

10

84412869

PROFILE,M8 x 1.25

Hexagonal M8 x 1.25

2шт.

11

84412859

SPRING

LH

1шт.

12

84412852

PLATE

for Fix Back

1шт.

13

84417751

Backrest, Cushion

1шт.

14

84412840

Sheet, for Back

1шт.

15

84417752

Cushion, Seat

1шт.

16

84412837

Sheet, for Seat

1шт.
