(90.124.AE[04]) - VAR - 336923 - DRIVER SEAT, SEAT PEDESTAL & AIR SUSPENSION

Запчасти Case IH FARMALL 130A (90.124.AE[04]) - VAR - 336923 - DRIVER SEAT, SEAT PEDESTAL & AIR SUSPENSION (90) - PLATFORM, CAB, BODYWORK AND DECALS

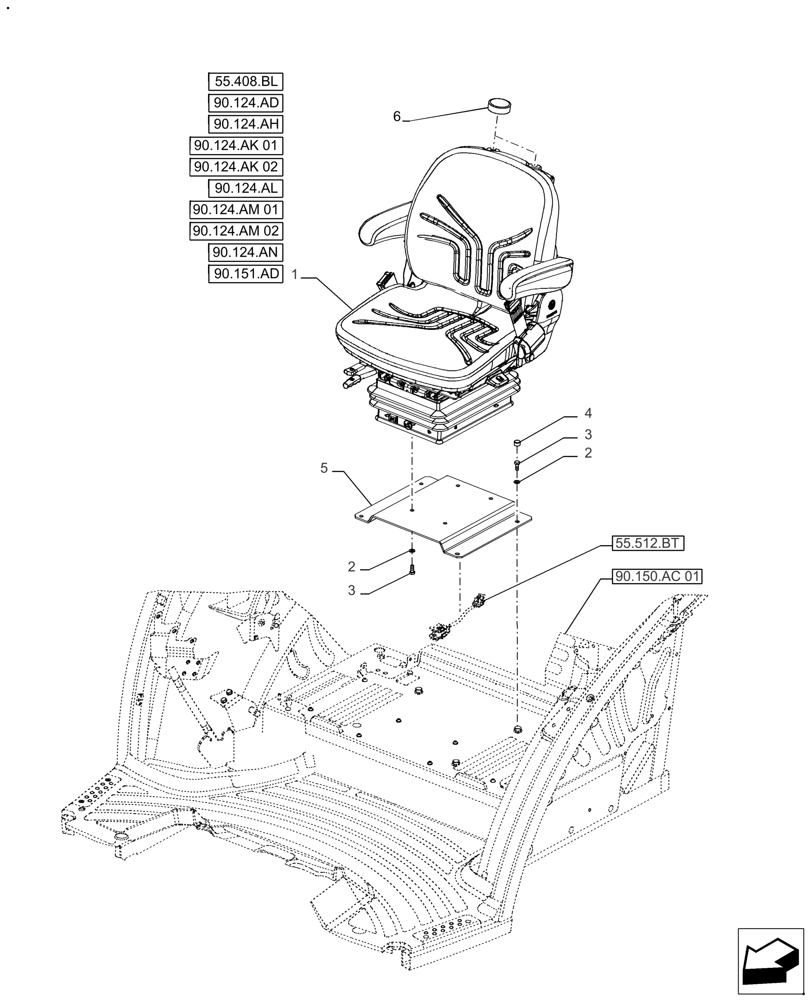

Схема запчастей Case IH FARMALL 130A - (90.124.AE[04]) - VAR - 336923 - DRIVER SEAT, SEAT PEDESTAL & AIR SUSPENSION (90) - PLATFORM, CAB, BODYWORK AND DECALS
90.150.ac 01
2
2
3
3
1
6
5
4
90.124.al
90.124.am 01
90.124.am 02
90.124.ad
55.408.bl
90.124.ah
90.151.ad
90.124.ak 01
90.124.an
55.512.bt
90.124.ak 02
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

47488681

DRIVER SEAT

Assy. Fabric, Wheat

1шт.

Air Suspension, W/ Safety Switch, W/ Armrest

1шт.

See Driver Seat Components also in Section, Subsection 55.408, 90.124, 90.151

1шт.

2

86511315

WASHER,8.4mm ID x 16mm OD x 1.8mm Thk

8шт.

3

43233

BOLT,Hex, M8 x 1.25 x 20mm, Full Thd, Cl 10.9

8шт.

4

47841878

COVER

Cover

4шт.

5

47598191

SUPPORT

Seat

1шт.

6

84255310

COVER

For Backrest

1шт.

Выбрано товаров: 8
