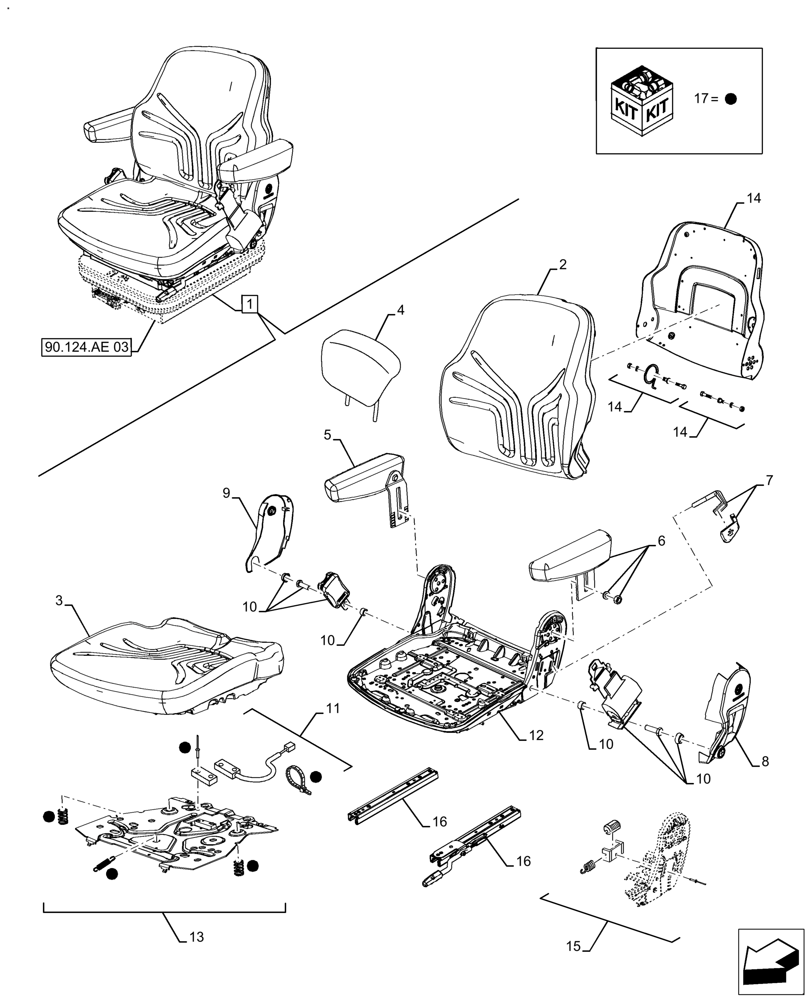

Запчасти Case IH FARMALL 130A (90.124.AE[02]) - VAR - 391268 - DRIVER SEAT, W/O CAB (90) - PLATFORM, CAB, BODYWORK AND DECALS

1

47959346

CUSHION

Incl 2 - 17

1шт.

Incl in 47802340

1шт.

2

47960032

SEAT BACK

Cushion, Kit, Back, Dov

1шт.

3

47959361

SEAT CUSHION

Cushion, Kit, Seat, Dov

1шт.

4

47959362

SEAT HEADREST

Headrest, Seat, Ext, Kit, Blk

1шт.

5

87536543

ARMREST

RH

1шт.

6

87536542

ARMREST

LH

1шт.

7

82034960

LEVER

Control

1шт.

8

47959979

COVER

Cover, Side, Kit, Blk

1шт.

9

47959991

COVER

Cover, Side, Kit, Blk

1шт.

10

47959990

SEAT BELT

Seat, Operator, Seatbelt Kit, Retract

1шт.

11

47959986

CONTROL

Seat, Operator, Switch

1шт.

12

87584099

PAN

Seat

1шт.

13

47959983

COMPENSATOR

Compensator, Compl

1шт.

14

47959980

SEAT BACK

Backrest, Kit

1шт.

15

47959988

LOCK

Seat, Operator, Recliner Locking Mec

1шт.

16

47959987

SLIDE

Slide, Adjustment, Kit

1шт.

17

47959989

SEAT CUSHION

Seat, Operator, Small Parts Swi

1шт.

Small Parts are Present in the Corresponding Complete Assembly Units

1шт.
