(90.124.AE[01]) - VAR - 391268 - DRIVER SEAT, W/O CAB

Запчасти Case IH FARMALL 130A (90.124.AE[01]) - VAR - 391268 - DRIVER SEAT, W/O CAB (90) - PLATFORM, CAB, BODYWORK AND DECALS

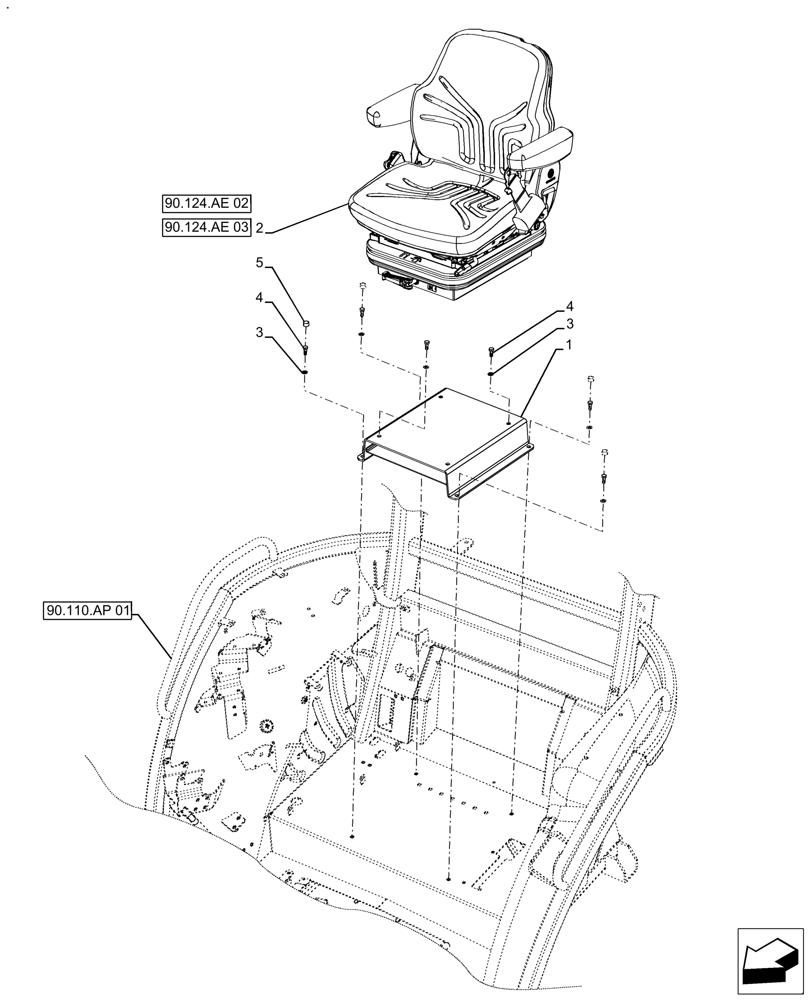

Схема запчастей Case IH FARMALL 130A - (90.124.AE[01]) - VAR - 391268 - DRIVER SEAT, W/O CAB (90) - PLATFORM, CAB, BODYWORK AND DECALS
90.110.ap 01
3
3
1
5
4
2
4
90.124.ae 02
90.124.ae 03
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

47636060

SUPPORT

Assy. For Deluxe Seat

1шт.

2

47802340

CHAIR

Deluxe, Operator Seat

1шт.

3

86625263

WASHER,9mm ID x 20mm OD x 1.6mm Thk

8шт.

4

120104

BOLT,Hex, M8 x 1.25 x 20mm, Cl 8.8

8шт.

5

47841878

COVER

4шт.

Выбрано товаров: 5
