Запчасти Case IH FARMALL 130A (90.120.AD[02]) - VAR - 391268 - DRIVER SEAT, COMPONENTS (90) - PLATFORM, CAB, BODYWORK AND DECALS

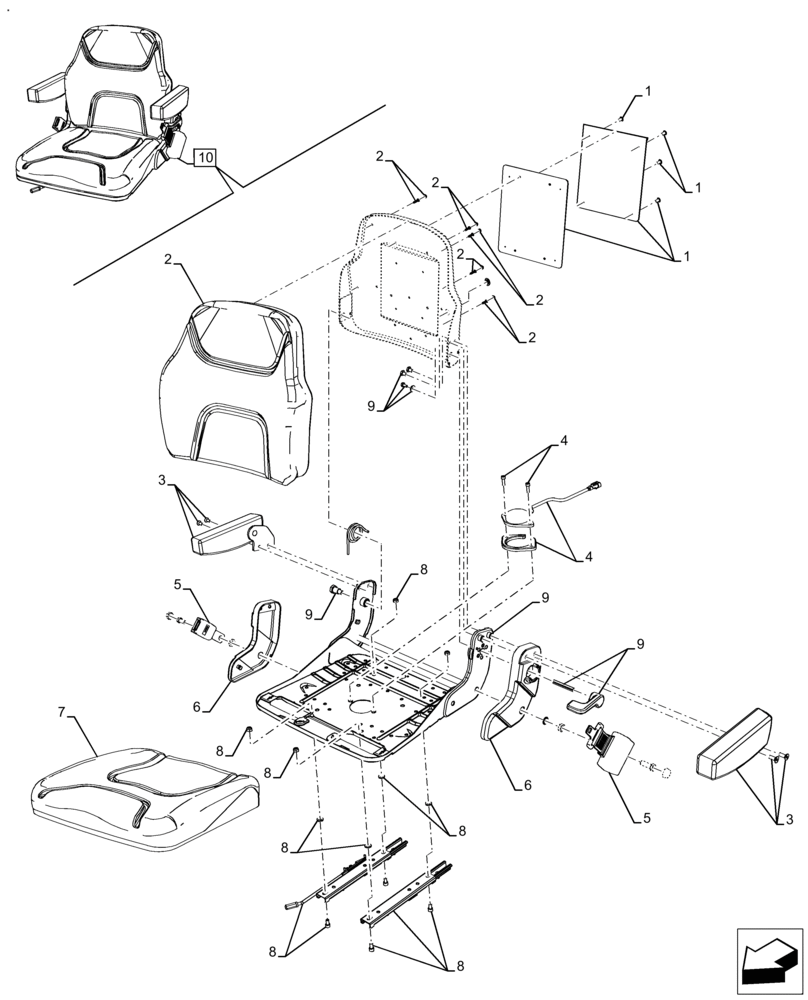

Схема запчастей Case IH FARMALL 130A - (90.120.AD[02]) - VAR - 391268 - DRIVER SEAT, COMPONENTS (90) - PLATFORM, CAB, BODYWORK AND DECALS
2
8
8
9
3
4
2
6
5
1
3
9
2
5
8
2
6
8
9
1
8
8
9
10
2
8
7
1
2
4

Артикул

Название

Примечание

Количество

1

47867129

DRIVER SEAT

CIH Fabric, Mechanical Suspension 33/SM80X, Incl 2 - 10

1шт.

2

84352163

BACKREST

1шт.

3

47829278

KIT

Armrests RH & LH With Hardware

1шт.

4

47829290

KIT

Plate, With Dops In Fabric

1шт.

5

84398541

SEAT BELT,49mm W x 1250mm L

1шт.

6

47829295

KIT

Hardware And Covers For RH & LH Armrest

1шт.

7

47829298

SEAT CUSHION

With Dops in Fabric

1шт.

8

47382367

KIT

RH And LH Rails

1шт.

9

47829294

KIT

Hardware

1шт.

10

84351150

KIT

Pouch Document - Pilot

1шт.

Выбрано товаров: 10
