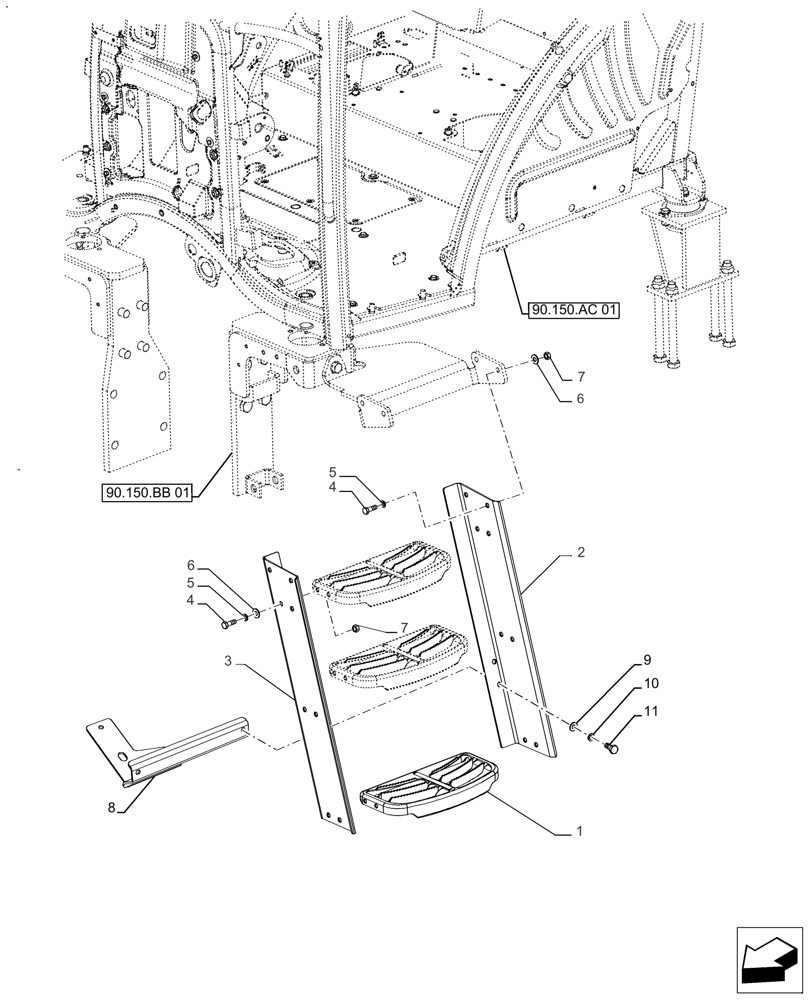

Запчасти Case IH FARMALL 130A (90.118.CE[01]) - VAR - 390460, 337102, 391610 - OPERATORS LADDER, LEFT SIDE (90) - PLATFORM, CAB, BODYWORK AND DECALS

1

73337713

STEP

3шт.

2

73337712

SUPPORT

Step RH

1шт.

3

73337711

SUPPORT

Step LH

1шт.

4

43140

BOLT,Hex, M10 x 1.5 x 30mm, Cl 8.8

16шт.

5

85700672

LOCK WASHER,M10

16шт.

6

86625253

WASHER,11mm ID x 24mm OD x 2mm Thk

16шт.

7

86500689

NUT,M10 x 1.5, Cl 10

16шт.

8

47548221

SUPPORT

Assy. LW Step LH

1шт.

9

86625253

WASHER,11mm ID x 24mm OD x 2mm Thk

2шт.

10

85700672

LOCK WASHER,M10

2шт.

11

43139

BOLT,M10 x 1.5 x 25mm, Cl 8.8

2шт.
