(90.118.BM) - VAR - 390154 - FIXED EXTERNAL REAR VIEW MIRROR

Запчасти Case IH FARMALL 130A (90.118.BM) - VAR - 390154 - FIXED EXTERNAL REAR VIEW MIRROR (90) - PLATFORM, CAB, BODYWORK AND DECALS

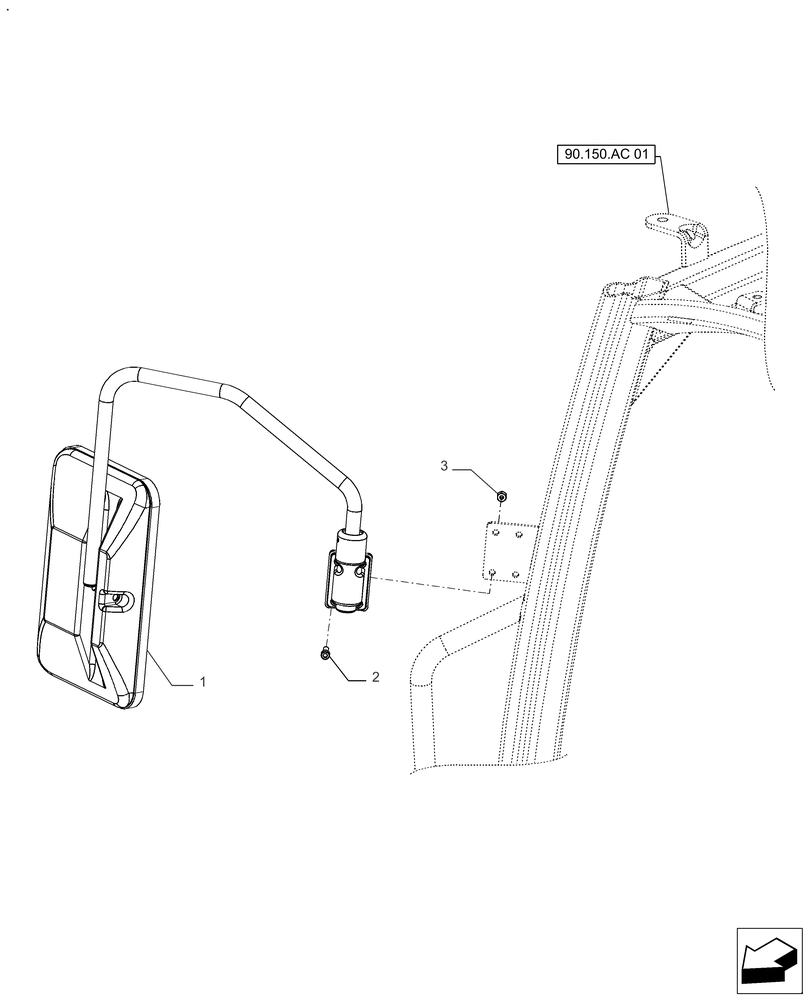

Схема запчастей Case IH FARMALL 130A - (90.118.BM) - VAR - 390154 - FIXED EXTERNAL REAR VIEW MIRROR (90) - PLATFORM, CAB, BODYWORK AND DECALS
1
3
2
90.150.ac 01
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

47725476

ARM

Mirror Assy.

2шт.

2

14305331

HEX SOC SCREW,M6 x 20mm, Cl 10.9, Full Thd

8шт.

3

12574211

NUT,M6 x 1, Cl 8

8шт.

Выбрано товаров: 3
