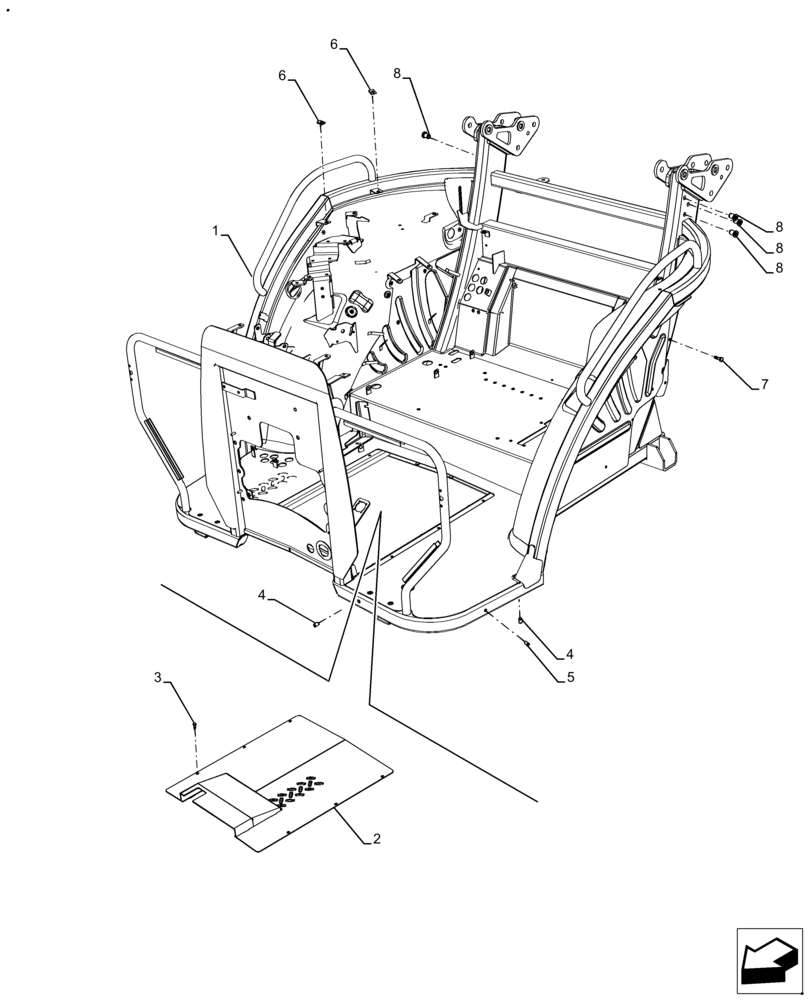

Запчасти Case IH FARMALL 130A (90.110.AP[01]) - VAR - 393315 - PLATFORM, W/O CAB (90) - PLATFORM, CAB, BODYWORK AND DECALS

1

47639522

Frame Assy. Platform

FRAME

1шт.

2

47642507

COVER

Assy. Platform

1шт.

3

86508568

BOLT,Hex, M6 x 1 x 16mm, Cl 8.8

6шт.

4

15629811

RIVET,Flat, M8 OD x 16mm L

7шт.

5

84326555

RIVET

Nut, Riveted, Flat HD, RND, M6X16.4L

21шт.

6

14371774

SPRING NUT,M6, U, 12mm long

22шт.

7

47703660

RIVET

Thread M6

4шт.

8

73336977

RIVET

Thread M10

6шт.
