Запчасти Case IH FARMALL 130A (90.110.AH) - VAR - 393315 - INSTRUMENT PANEL, FRONT, W/O CAB (90) - PLATFORM, CAB, BODYWORK AND DECALS

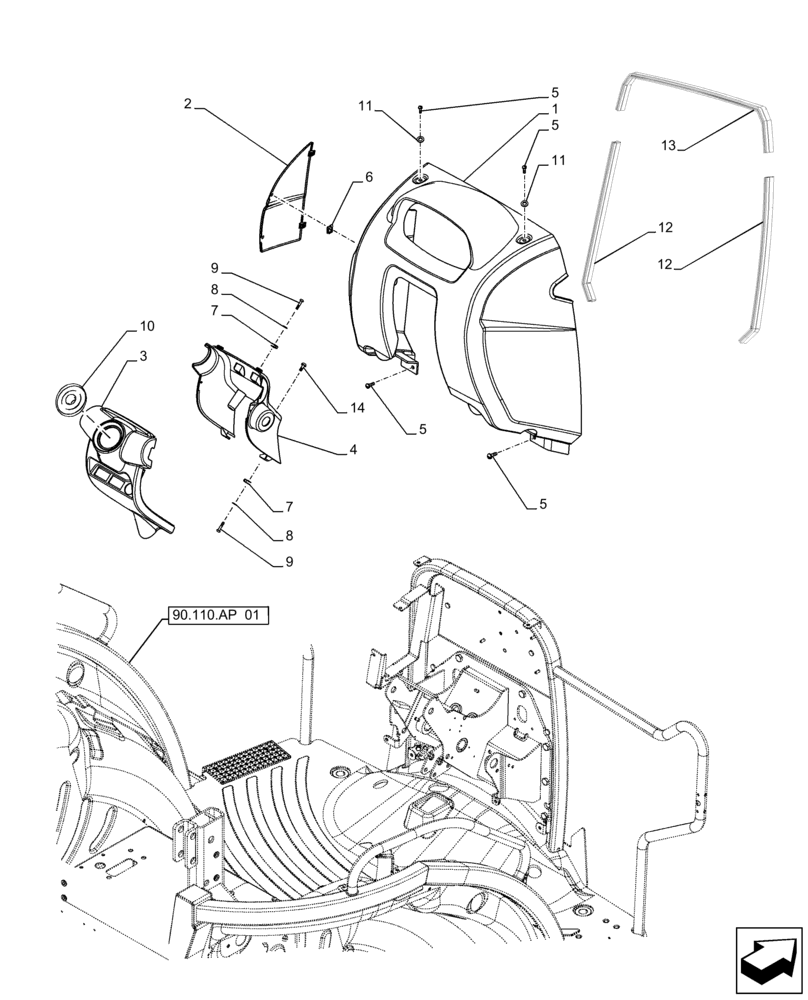

Схема запчастей Case IH FARMALL 130A - (90.110.AH) - VAR - 393315 - INSTRUMENT PANEL, FRONT, W/O CAB (90) - PLATFORM, CAB, BODYWORK AND DECALS
90.110.ap 01
3
12
11
13
7
8
2
5
4
10
5
5
12
9
6
7
11
9
8
5
1
14

Артикул

Название

Примечание

Количество

1

84340249

CONSOLE

Assy.

1шт.

2

84322795

TOP COVER

1шт.

3

84322818

CONSOLE

Cover, Upper

1шт.

4

84322822

CONSOLE

Cover, Lower

1шт.

5

86020047

SCREW,Phil Oval Hd, Csk, M6 x 25mm, Cl 4.8, Full Thd

6шт.

6

5174673

FASTENER,12mm OD

2шт.

7

14372671

SPRING NUT,M4.2, U, 12.4mm long

6шт.

8

895-19005

WASHER,M5 x 10 x 1

6шт.

9

47874056

SCREW

Screw, AB, 8-18 x 3/4 PAN HD, BZN

6шт.

10

47534087

PLUG,TA 20-50 black CNH

1шт.

11

84524958

WASHER

6шт.

12

47498116

SEAL

Rubber, Rear Hood

2шт.

13

47498111

SEAL

Rubber, Rear Hood

1шт.

14

1983037

HEX SOC SCREW,Btn Hd Flg, M6 x 16mm, Cl 10.9

4шт.

Выбрано товаров: 14
