Запчасти Case IH FARMALL 130A (90.108.AC[01]) - VAR - 330007, 336937, 330845 - DECAL, WARNING & SERVICE (90) - PLATFORM, CAB, BODYWORK AND DECALS

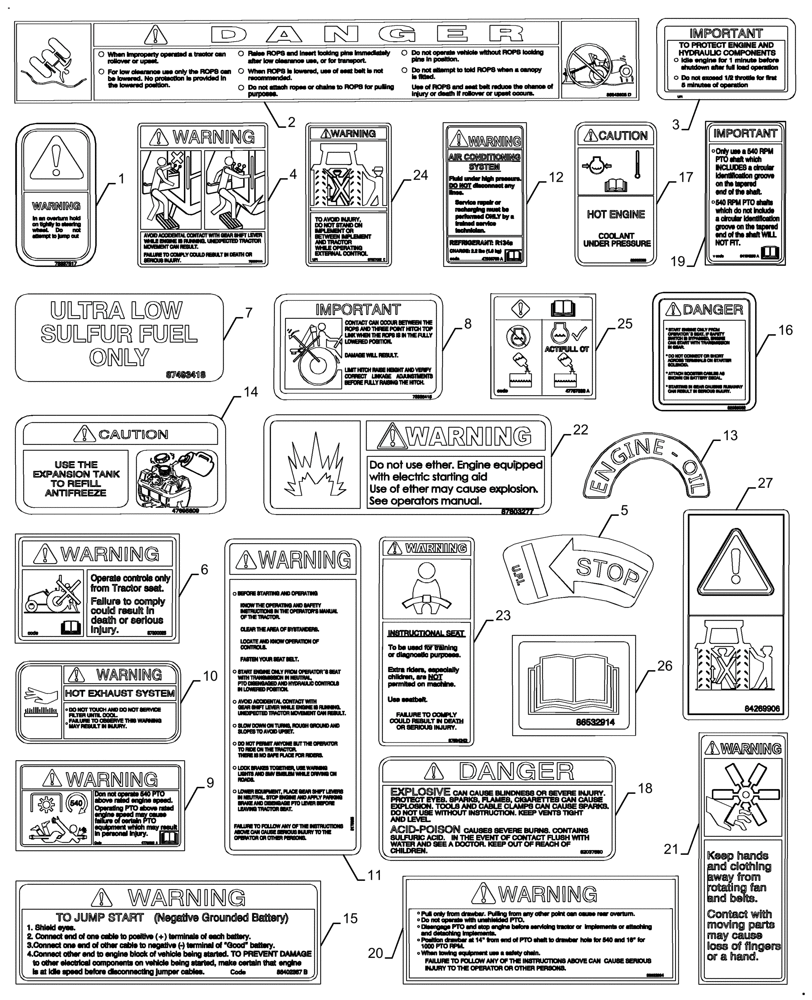

Схема запчастей Case IH FARMALL 130A - (90.108.AC[01]) - VAR - 330007, 336937, 330845 - DECAL, WARNING & SERVICE (90) - PLATFORM, CAB, BODYWORK AND DECALS
20
17
14
18
9
13
16
10
6
2
27
23
7
21
15
1
11
5
12
22
8
3
25
4
24
26
19

Артикул

Название

Примечание

Количество

1

73337517

DECAL

Warning, Overturn - English

1шт.

2

86543805

DANGER DECAL

Sign, Foldable Rops

1шт.

3

83919977

IMPORTANT DECAL

1шт.

4

73335414

WARNING DECAL

Vehicle OP. Instructions

2шт.

5

81866777

DECAL

Fuel Shut Off

1шт.

6

87300025

WARNING DECAL

1шт.

7

87493418

DECAL,50mm x 21mm H

Ultra Low Sulfur Fuel

1шт.

8

73335415

IMPORTANT DECAL

Notice Rops

1шт.

9

47760926

WARNING DECAL

PTO English

1шт.

10

82981270

DECAL

Warning

1шт.

11

5179865

WARNING DECAL

Operator Instructions Warning Plate

1шт.

12

47836789

WARNING DECAL

Warning, Air Conditioning System English

1шт.

13

47137032

DECAL

For Engine Oil Plug

1шт.

14

47695809

CAUTION DECAL

Radiator Filled, English

1шт.

15

86402367

WARNING DECAL

Jump Start

1шт.

16

82985062

DANGER DECAL

Starter

1шт.

17

82985063

CAUTION DECAL

Hot Engine

1шт.

18

82037580

DECAL

Battery Safety Instructions

1шт.

19

84194269

IMPORTANT DECAL

540RPM W/ Groove

1шт.

20

86532904

WARNING DECAL

Drawbar Pull

1шт.

21

86532907

WARNING DECAL

Fan

2шт.

22

87803277

WARNING DECAL

Ether

1шт.

23

87594242

DECAL

Instruction Seat

1шт.

24

87327082

DECAL

Warning External Controls

1шт.

25

47757330

DECAL,50mm x 50mm H

Oat Coolant - Actifull OT - 50 x 50

1шт.

26

86532914

DECAL

Sign Operator Manual

1шт.

27

84269906

DECAL

Decal, Warning, External Control

1шт.

Выбрано товаров: 27
