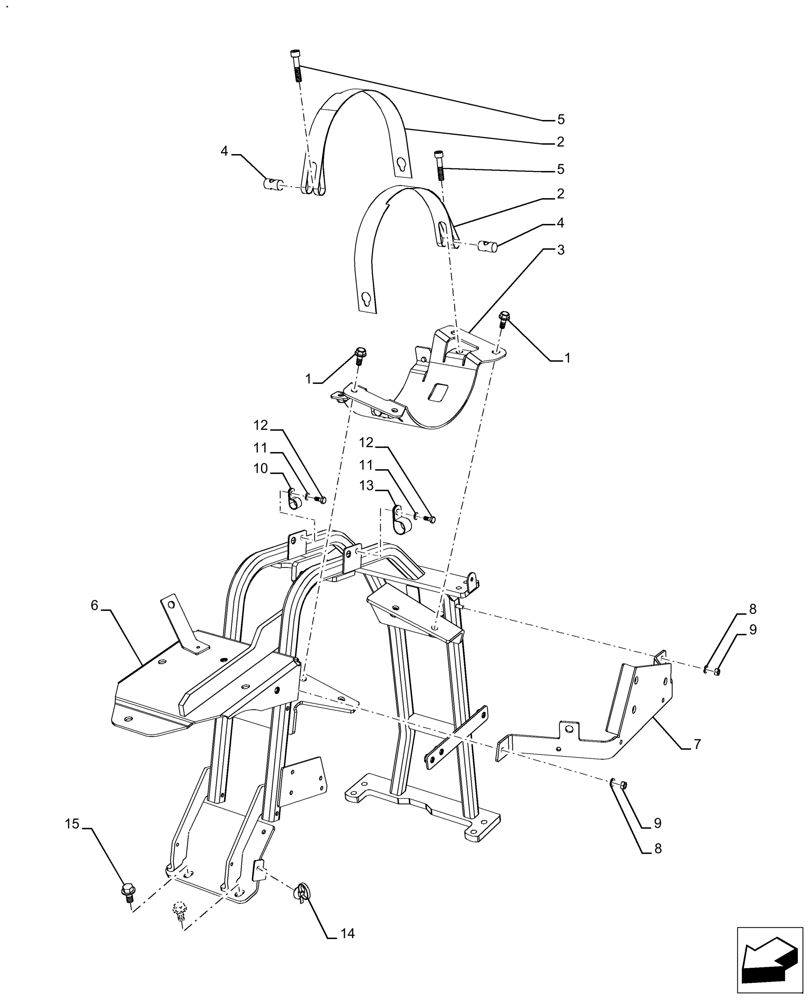

Запчасти Case IH FARMALL 130A (90.102.AW[01]) - VAR - 391610, 393315 - HOOD, SUPPORT (90) - PLATFORM, CAB, BODYWORK AND DECALS

1

86511479

BOLT,Hex Flg, M8 x 20mm

4шт.

2

47663126

STRAP

Securing, Doc

2шт.

3

47854948

BRACKET

Assy. Doc

1шт.

4

47919785

BOLT

Guide

2шт.

5

864-8040

HEX SOC SCREW,M8 x 40mm, Cl 8.8

2шт.

6

47836094

SUPPORT

Hood Assy.

1шт.

7

47664721

SUPPORT

Hood Assy. LH

1шт.

8

86588450

WASHER,6.6mm ID x 12mm OD x 1.6mm Thk

2шт.

9

86500688

NUT,Hex, M6 x 1.0, Cl 10.9

2шт.

10

87532034

CLAMP,15.9mm, Coat, 7.1mm Bolt Hole, P Type

1шт.

11

12601279

WAVE WASHER,6.40mm ID x 12mm OD x 0.50mm, 2.60mm H, STL, ZND

2шт.

12

10902221

BOLT,Hex, M6 x 16mm, CL 8.8

2шт.

13

87029955

CLAMP,22.2mm, Coat, 10.3mm Bolt Hole, P Type

1шт.

14

82033028

CABLE TIE,170mm L

1шт.

15

86050286

FLANGE BOLT,M10 x 20mm, Cl 8.8

2шт.
