Запчасти Case IH FARMALL 130A (88.100.90[05]) - VAR - 718510 - DIA KIT, DYNAMIC FRONT FENDER, 4WD (88) - ACCESSORIES

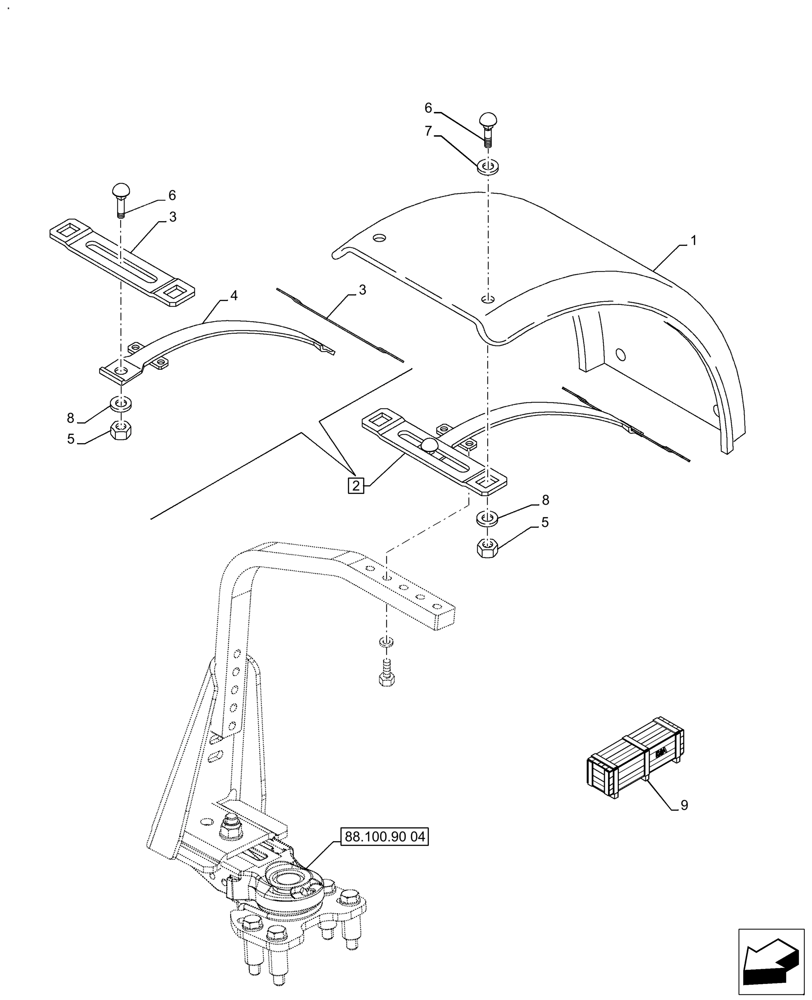

Схема запчастей Case IH FARMALL 130A - (88.100.90[05]) - VAR - 718510 - DIA KIT, DYNAMIC FRONT FENDER, 4WD (88) - ACCESSORIES
88.100.90 04
2
7
4
9
5
8
8
5
3
6
1
3
6

Артикул

Название

Примечание

Количество

1

87616388

MUD DEFLECTOR,420mm W

2шт.

2

87659018

SUPPORT

Fender, Cover Bracket Assy.

2шт.

3

82021040

SUPPORT

Plate, Fender

2шт.

4

87616362

BRACKET

Assy. Cover

1шт.

5

12577211

LOCK NUT,M10 x 1.5mm Pitch, 12.30mm High, Cl 8, ZND

6шт.

6

13183201

CARRIAGE BOLT,Sq Nk, M10 x 1.5 x 30mm, Cl 4.8

8шт.

7

84145763

WASHER,14mm ID x 41.3mm OD x 2.64mm Thk

8шт.

8

12626201

WASHER,10.2mm ID x 25mm OD x 3mm Thk

6шт.

9

718510024

DIA KIT, TRACTOR

Dynamic Front Fenders for Standard Axle CLS 3, Incl 1 - 8

1шт.

To See the Full DIA KIT Composition Look for All the Figures Where the DIA KIT P/N is Shown

1шт.

Выбрано товаров: 10
