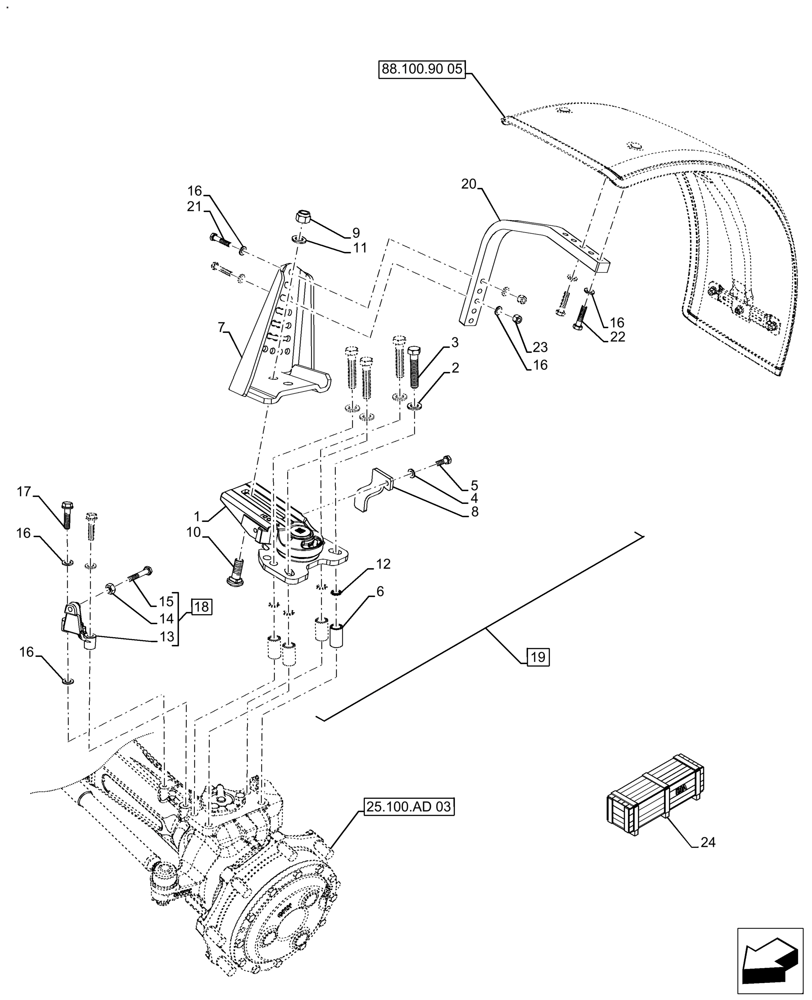

Запчасти Case IH FARMALL 130A (88.100.90[04]) - VAR - 718510 - DIA KIT, DYNAMIC FRONT FENDER, 4WD (88) - ACCESSORIES

1

47457427

HUB

Assy. RH

1шт.

1

47457429

HUB

Assy. LH

1шт.

2

14496901

WASHER,17mm ID x 30mm OD x 3mm Thk

4шт.

3

11254121

BOLT,Hex, M16 x 80, 8.8

4шт.

4

11198574

BELLEVILLE WASHER,Belleville, M10.5

1шт.

5

11306924

BOLT,Hex, M10 x 1.25 x 30, 8.8, Full Thd

1шт.

6

87543524

SPACER,45mm

4шт.

7

47802226

SUPPORT

Fender, RH

1шт.

7

47802230

SUPPORT

Fender, LH

1шт.

8

84280349

LOCKING PLATE

RH

1шт.

8

84280350

LOCKING PLATE

LH

1шт.

9

47132634

NUT,M18, 1.5mm Pitch

1шт.

10

47132633

SCREW,M18 x 1.5, Cl 8.8

1шт.

11

14489601

WASHER,19mm ID x 34mm OD x 3mm Thk

1шт.

12

87611913

GASKET

4шт.

13

NSS

NOT SOLD SEPARAT

Stop, RH, Incl in 18

1шт.

13

NSS

NOT SOLD SEPARAT

Stop, LH, Incl in 18

1шт.

14

11701711

NUT,Hex, M10, Cl 8, ZND

1шт.

15

15215021

BOLT,Hex, M10 x 1.5 x 70mm, Cl 8.8, Full Thd

1шт.

16

14496701

WASHER,13.00mm ID x 24.00mm OD x 2.50mm, CST, ZND

16шт.

17

15540821

SCREW,Hex, M12 x 1.25 x 50mm, Cl 8.8

4шт.

18

87475473

STOP

RH, Incl 13 - 15

1шт.

18

87475476

STOP

LH, Incl 13 - 15

1шт.

19

47802224

HUB

RH, Incl 1 - 12

1шт.

19

47802229

HUB

LH, Incl 1 - 12

1шт.

20

47802232

SUPPORT

2шт.

21

15541121

SCREW,Hex, M12 x 1.25 x 65mm, Cl 8.8

4шт.

22

15540624

BOLT,Hex, M12 x 1.25 x 40mm, Cl 8.8, Full Thd

4шт.

23

12164911

NUT,M12 x 1.75, Cl 8

4шт.

24

718510024

DIA KIT, TRACTOR

Dynamic Front Fenders for Standard Axle CLS 3, Incl 1 - 23

1шт.

To See the Full DIA KIT Composition Look for All the Figures Where the DIA KIT P/N is Shown

1шт.
