(88.100.82[01]) - VAR - 718173, 718180, 439152, 439153 - DIA KIT, MID MOUNT VALVE KIT, LOADER

Запчасти Case IH FARMALL 130A (88.100.82[01]) - VAR - 718173, 718180, 439152, 439153 - DIA KIT, MID MOUNT VALVE KIT, LOADER (88) - ACCESSORIES

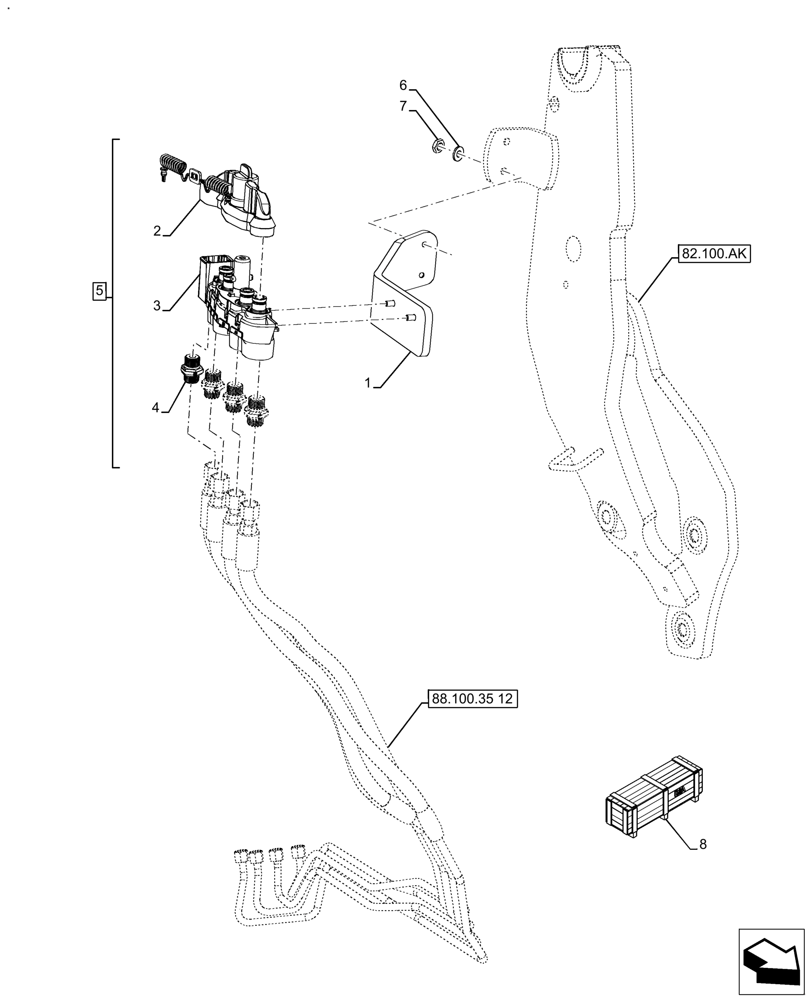

Схема запчастей Case IH FARMALL 130A - (88.100.82[01]) - VAR - 718173, 718180, 439152, 439153 - DIA KIT, MID MOUNT VALVE KIT, LOADER (88) - ACCESSORIES
82.100.ak
7
3
8
2
1
6
4
88.100.35 12
5
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

47695736

BRACKET

Valve - Support

1шт.

2

47681549

DUST CAP

1шт.

3

47681462

HYD CONNECTOR

1шт.

4

47681095

HYD CONNECTOR,7/8"-14 x 13/16"-16 ORFS

4шт.

5

47695744

VALVE

MC4, Incl 1 - 4

1шт.

6

85700672

LOCK WASHER,M10

2шт.

7

86500689

NUT,M10 x 1.5, Cl 10

2шт.

8

47805482

Mid Mount Loader Valve Joystic Cab, Incl 1 - 7

1шт.

To See the Full DIA KIT Composition Look for All the Figures Where the DIA KIT P/N is Shown

1шт.

Sohipren

1шт.

8

47805487

Mid Mount Loader Valve Joystic Rops, Incl 1 - 7

1шт.

To See the Full DIA KIT Composition Look for All the Figures Where the DIA KIT P/N is Shown

1шт.

Sohipren

1шт.

8

47932553

KIT

Mid Mount Loader Valve Joystic Cab, Incl 1 - 7

1шт.

To See the Full DIA KIT Composition Look for All the Figures Where the DIA KIT P/N is Shown

1шт.

Bosch

1шт.

8

47932567

KIT

Mid Mount Loader Valve Joystic Rops, Incl 1 - 7

1шт.

To See the Full DIA KIT Composition Look for All the Figures Where the DIA KIT P/N is Shown

1шт.

Bosch

1шт.
