(88.100.35[10]) - VAR - 718173, 718180 - DIA KIT, MID MOUNT VALVE KIT, LOADER

Запчасти Case IH FARMALL 130A (88.100.35[10]) - VAR - 718173, 718180 - DIA KIT, MID MOUNT VALVE KIT, LOADER (88) - ACCESSORIES

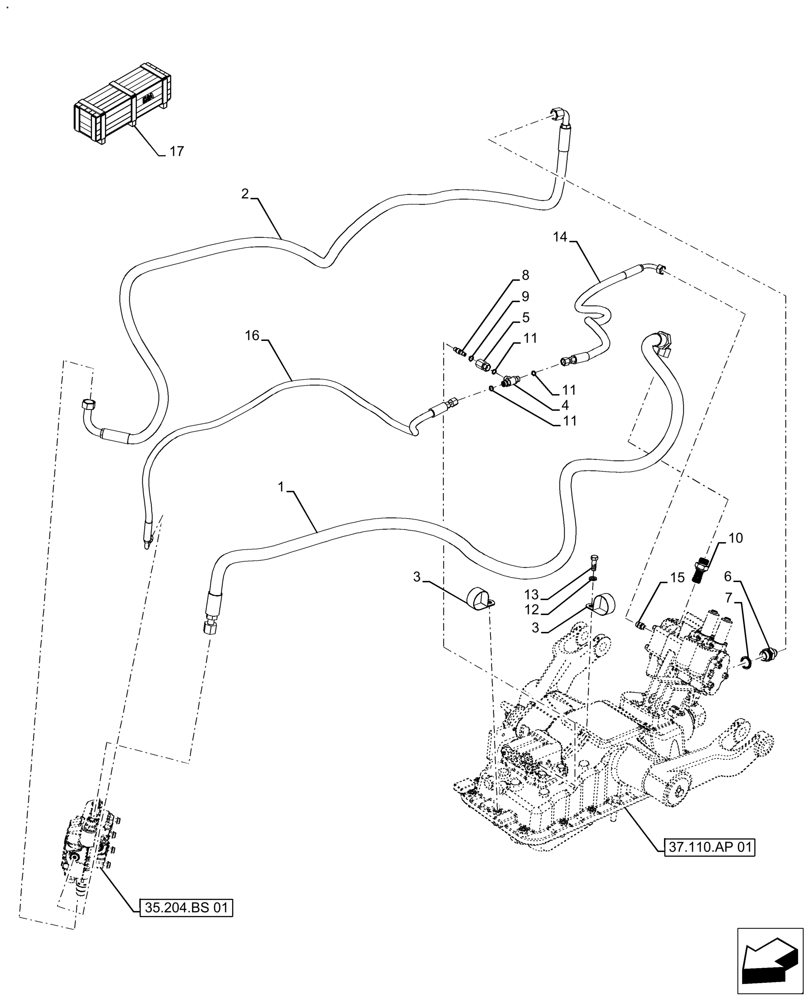

Схема запчастей Case IH FARMALL 130A - (88.100.35[10]) - VAR - 718173, 718180 - DIA KIT, MID MOUNT VALVE KIT, LOADER (88) - ACCESSORIES
37.110.ap 01
13
12
14
16
6
15
11
3
11
7
2
9
3
17
11
1
4
10
8
5
35.204.bs 01
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

47660009

HOSE

Pressure Hose 3/4

1шт.

2

47660038

HOSE

Return Tank

1шт.

3

86634189

CLAMP,50.8mm, Coat, 13.5mm Bolt Hole, P Type

3шт.

4

81862791

VALVE,9/16" - 18 ORFS x 9/16" - 18 ORFS x 9/16" - 18 ORFS

1шт.

5

47407747

HYD CONNECTOR

Adapter ORFS Swivel 9/16-18 ORB 7/16-20

1шт.

6

47660157

ADAPTER

Connector Braze PLTD Adapter 7/8-14-R

1шт.

7

47660214

SEALING RING

1шт.

8

83925042

PLUG

1шт.

9

165202

O-RING,0.072" Thk x 0.351" ID, -904, Cl 6, 90 Duro

2шт.

10

47663373

ADAPTER

Connector, Braze Assy. Valve Fit

1шт.

11

89825770

O-RING,0.07" Thk x 0.301" ID, -11, Cl 6, 90 Duro

3шт.

12

83935787

LOCK WASHER,7/16"

1шт.

13

81821252

BOLT,Hex, 7/16" - 14 x 1 1/4", Gr 5

1шт.

14

47660204

HOSE

Hose 9/16-18 ORFS

1шт.

15

87681202

HYD CONNECTOR,9/16" - 18 ORFS x 7/16" - 20 ORB

4 ORFS x 7/16-20 ORB

1шт.

16

47662989

HOSE

Pilot Hose

1шт.

17

47805482

Mid Mount Loader Valve Joystic Cab. Incl 1 - 16

1шт.

To See the Full DIA KIT Composition Look for All the Figures Where the DIA KIT P/N is Shown

1шт.

17

47805487

Mid Mount Loader Valve Joystic Rops. Incl 1 - 16

1шт.

To See the Full DIA KIT Composition Look for All the Figures Where the DIA KIT P/N is Shown

1шт.
