Запчасти Case IH FARMALL 130A (88.100.35[04]) - VAR - 718166 - DIA KIT, FROM 2 DELUXE VALVES TO 3, W/O CAB (88) - ACCESSORIES

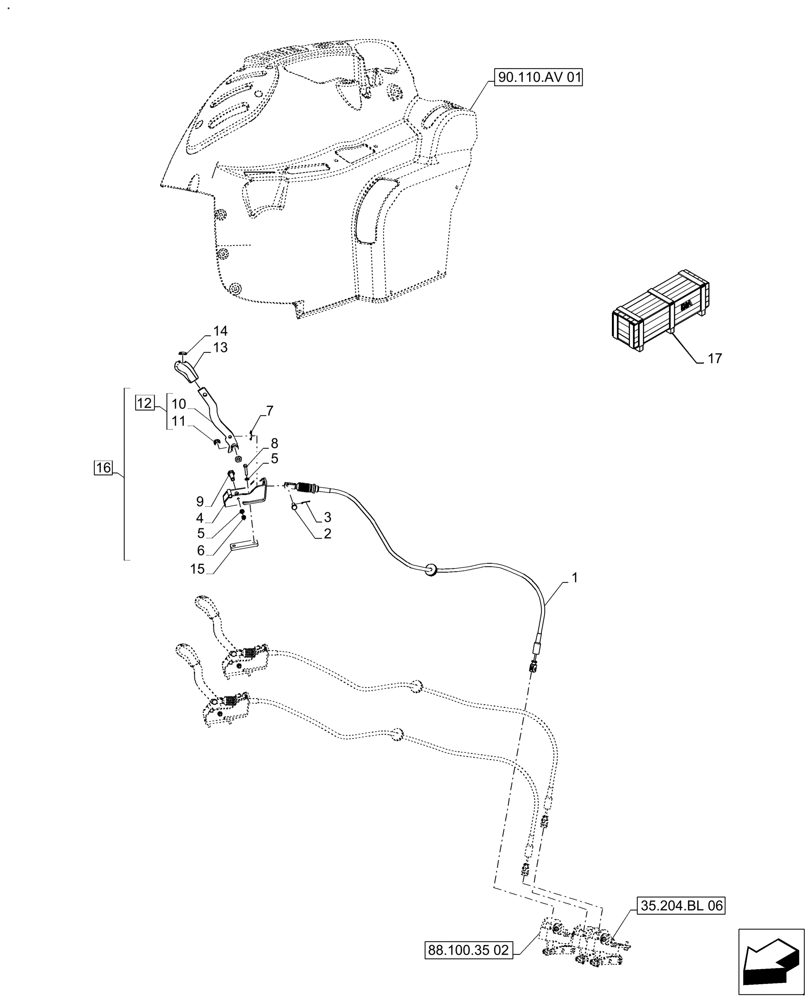

Схема запчастей Case IH FARMALL 130A - (88.100.35[04]) - VAR - 718166 - DIA KIT, FROM 2 DELUXE VALVES TO 3, W/O CAB (88) - ACCESSORIES
35.204.bl 06
2
13
17
7
11
15
10
14
5
1
16
12
5
4
9
8
3
6
88.100.35 02
90.110.av 01

Артикул

Название

Примечание

Количество

1

48120755

Assy. Hydraulic Remote Control Valve

CABLE

1шт.

2

385818

CLEVIS PIN,M8 x 20

1шт.

3

81813879

COTTER PIN,1/16" x 3/4"

1шт.

4

47687173

SUPPORT

Assy. Lever, Remote Valve

1шт.

5

86517328

LOCK WASHER,6.1mm ID x 11.8mm OD x 1.7mm Thk

3шт.

6

86500688

NUT,Hex, M6 x 1.0, Cl 10.9

1шт.

7

81865873

CLIP,19.40mm D

Hydraulic Remote Control Valve Cable Retaining

1шт.

8

10902821

SCREW,Hex, M6 x 30mm, Cl 8.8

2шт.

9

84487136

PIN,M6 x 1, 49.5mm L

1шт.

10

47864993

LEVER

Assy. Remote Valve

1шт.

11

84487137

BUSHING,10mm ID x 12mm OD x 10mm L

2шт.

12

47861016

LEVER

Incl 10, 11

1шт.

13

47056482

KNOB

1шт.

14

87698516

DATA PLAQUE

Ginger

1шт.

15

47864576

SPACER

Remote Valve

1шт.

16

47861017

SUPPORT

Incl 4, 5 (Qty 1), 6, 9 - 12

1шт.

17

48130931

Form 2 Deluxe Valves to 3, Rops, Incl 1 - 16

DIA KIT, TRACTOR

1шт.

To See the Full DIA KIT Composition Look for All the Figures Where the DIA KIT P/N is Shown

1шт.

Выбрано товаров: 18
