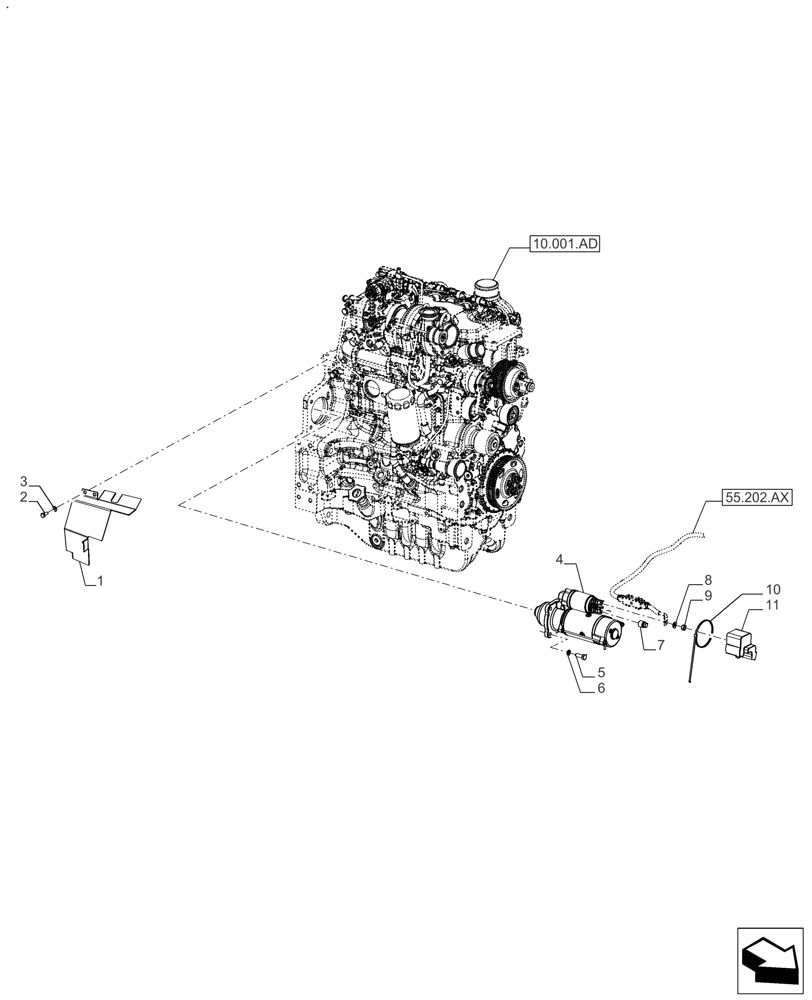

Запчасти Case IH FARMALL 130A (55.201.AE) - VAR - 391265 - STARTER MOTOR (55) - ELECTRICAL SYSTEMS

1

47858586

COVER ASSY

Starter Motor

1шт.

2

120104

BOLT,Hex, M8 x 1.25 x 20mm, Cl 8.8

2шт.

3

14496501

WASHER,8.4mm ID x 17mm OD x 1.6mm Thk

2шт.

4

84151331

STARTER MOTOR,12V, 4.2kW

1шт.

5

43140

BOLT,Hex, M10 x 1.5 x 30mm, Cl 8.8

3шт.

6

85700672

LOCK WASHER,M10

3шт.

7

5171012

NUT,M10

1шт.

8

11190574

BELLEVILLE WASHER,M10 Bolt Size x 20mm OD x 2.3mm Thk

1шт.

9

86500689

NUT,M10 x 1.5, Cl 10

1шт.

10

83933061

STRAP

1шт.

11

5184445

COVER

Starter Motor Solenoid Terminal

1шт.
