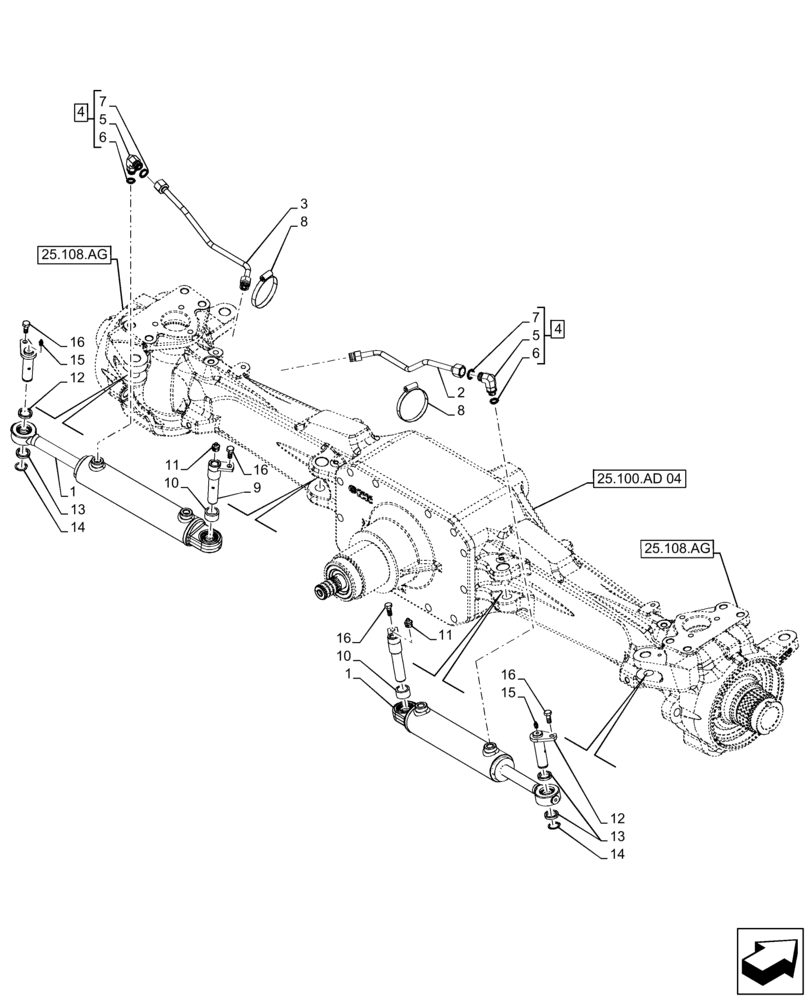

Запчасти Case IH FARMALL 130A (41.216.AN[01]) - VAR - 390509 - FRONT AXLE, STEERING CYLINDER (41) - STEERING

1

47582858

STEERING CYLINDER

2шт.

2

84233156

HYD TUBE,10.00mm OD x 276.00mm, 75.00mm L

1шт.

3

84233089

HYD TUBE,10.00mm OD x 276.00mm, 75.00mm L

1шт.

4

47127165

90 ELBOW

ASSY, Incl 5 - 7

2шт.

5

NSS

NOT SOLD SEPARAT

Elbow, Incl in 4

1шт.

6

5185510

O-RING,1.78mm Thk x 9.25mm ID, 85 Duro

1шт.

7

14437785

O-RING,11.3mm ID x 2.4mm

1шт.

8

13000990

COLLAR,60mm - 80mm, Worm Gear

2шт.

9

5142048

PIN,19.98mm x 107.00mm

2шт.

10

5142223

SPACER,20.5mm ID x 28mm OD x 16mm L

2шт.

11

5120532

LUBE NIPPLE,Straight, M14 x 1.5 x 6.50mm

2шт.

12

5173252

PIN,19.98mm OD x 79.5mm L

2шт.

13

5100730

WASHER,20.5mm ID x 28mm OD x 5.25mm Thk

4шт.

14

11066876

SNAP RING,M20, Ext

2шт.

15

13406911

LUBE NIPPLE,Straight, 1/4"-28 x 0.54"

2шт.

16

16043421

BOLT,Hex, M8 x 1.25 x 20mm, Cl 8.8, Full Thd

4шт.
