(25.108.AA[02]) - VAR - 390509 - FRONT AXLE, SHAFT

Запчасти Case IH FARMALL 130A (25.108.AA[02]) - VAR - 390509 - FRONT AXLE, SHAFT (25) - FRONT AXLE SYSTEM

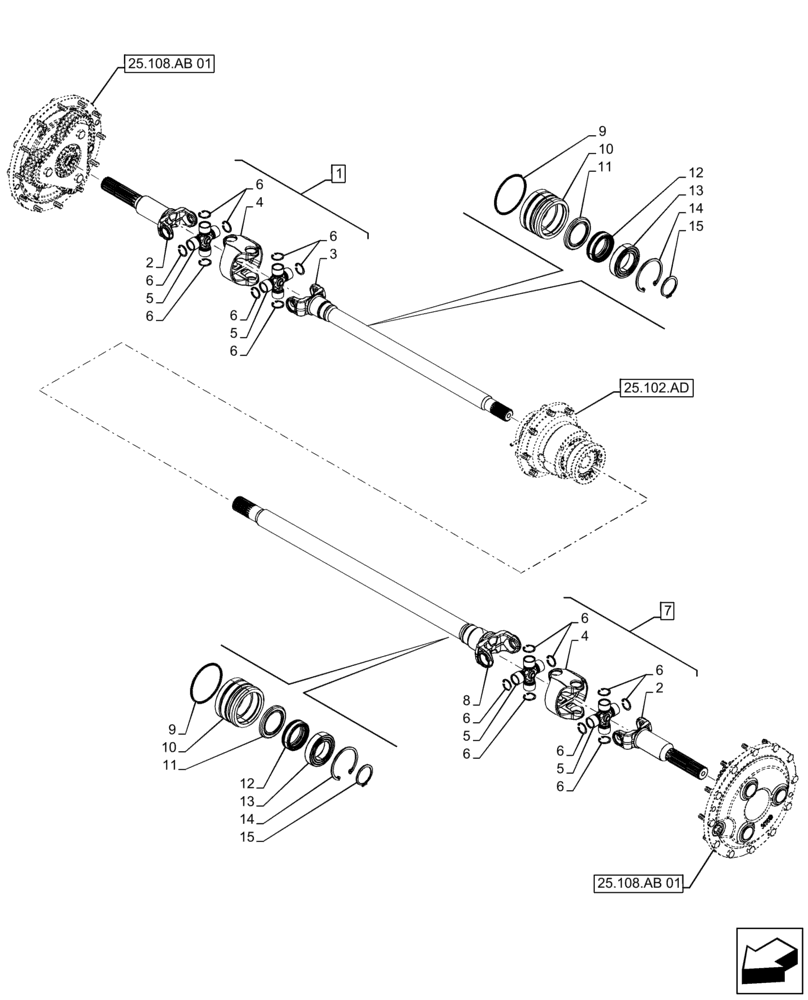

Схема запчастей Case IH FARMALL 130A - (25.108.AA[02]) - VAR - 390509 - FRONT AXLE, SHAFT (25) - FRONT AXLE SYSTEM
15
5
2
6
6
10
25.102.ad
6
4
25.108.ab 01
13
3
6
6
6
6
14
6
6
14
7
10
8
5
4
2
13
9
25.108.ab 01
5
11
6
12
11
12
15
9
6
5
6
1
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

84194816

SHAFT

Assy. Incl 2 - 6

1шт.

2

84201642

SHORT SHAFT FORK

1шт.

3

87579231

AXLE-SHAFT, ARTICULA,Yoke, 671mm L

1шт.

4

87361042

YOKE

1шт.

5

5191547

U-JOINT SPIDER

2шт.

6

5191548

CIRCLIP

8шт.

7

84194809

SHAFT

Assy. Incl 2, 4 - 6, 8

1шт.

8

87579229

AXLE-SHAFT, ARTICULA,Yoke, 732.50mm L

1шт.

9

14465380

O-RING,0.139" Thk x 3.109" ID, -235, Cl 5, 75 Duro

2шт.

10

84197406

BUSHING

Axle Shaft

2шт.

11

5109311

SEAL PROTECTION,45.2mm ID x 68mm OD x 1mm Thk

2шт.

12

84166622

SEAL,43.1mm ID x 60mm OD x 17.2mm Thk

2шт.

13

28042480

BALL BEARING,40.00mm x 68.00mm x 15.00mm

2шт.

14

11061376

SNAP RING,M68, Int

2шт.

15

11068876

SNAP RING,M40, Ext

2шт.
