Запчасти Case IH FARMALL 130A (25.102.AC[02]) - VAR - 390509 - FRONT AXLE, BEVEL GEAR (25) - FRONT AXLE SYSTEM

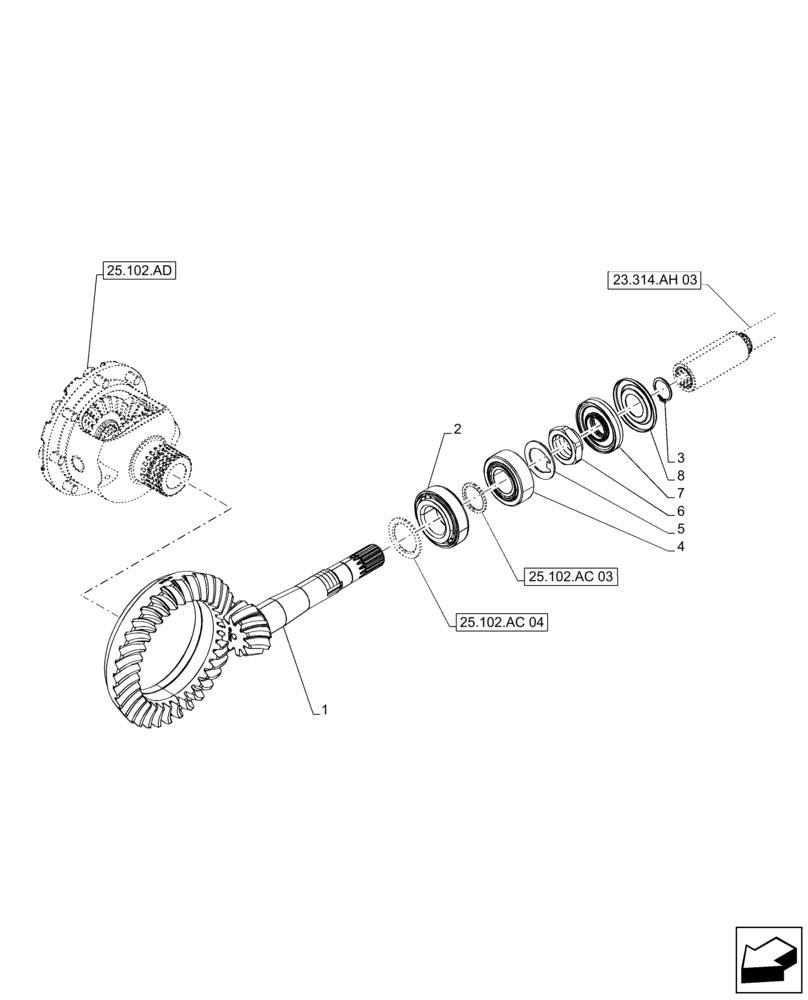

Схема запчастей Case IH FARMALL 130A - (25.102.AC[02]) - VAR - 390509 - FRONT AXLE, BEVEL GEAR (25) - FRONT AXLE SYSTEM
8
2
5
23.314.ah 03
7
1
3
25.102.ad
25.102.ac 04
6
4
25.102.ac 03

Артикул

Название

Примечание

Количество

1

84393566

GEAR

Bevel Assy.

1шт.

Alternate With PN 47589135

1шт.

2

5143109

TAPERED BEARING,41.27mm x 82.55mm x 26.54mm

1шт.

3

11067876

SNAP RING,M30, Ext

1шт.

4

5133776

TAPERED BEARING,35.00mm x 72.00mm x 28.00mm

1шт.

5

84285936

SPECIAL WASHER

Unscrewing Plate

1шт.

6

84289068

CROWN NUT,M35 x 1.5

1шт.

7

87349652

SEAL,32.5mm ID x 75mm OD x 15mm Thk

1шт.

8

87527839

SEAL PROTECTION

1шт.

Выбрано товаров: 9
