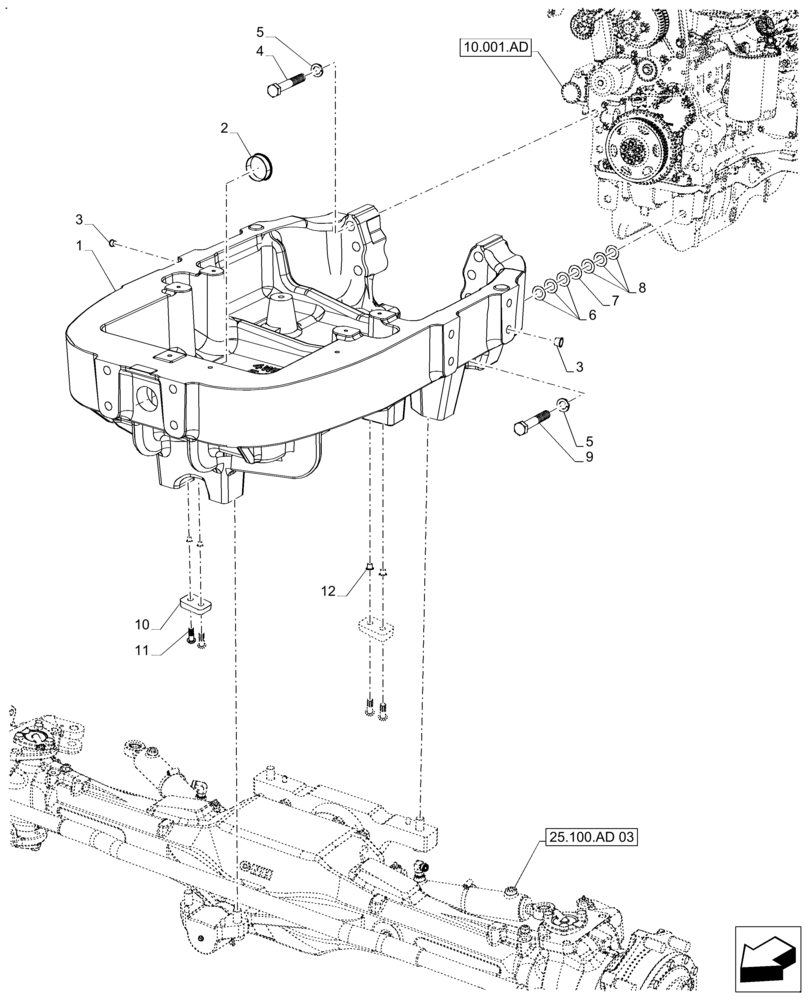

Запчасти Case IH FARMALL 130A (25.100.AV[03]) - VAR - 390509, 391404, 331497 - AXLE SUPPORT, 4WD, HEAVY DUTY (25) - FRONT AXLE SYSTEM

1

47609580

SUPPORT

Front Axle 4WD 4 CYL HD

1шт.

2

82989993

PLUG

Front Support

1шт.

3

85700666

PLASTIC PLUG,17.14mm, 22.22mm OD, 12.70mm D

8шт.

4

15989721

SCREW,Hex, M20 x 1.5

6шт.

5

10572379

WASHER,M20.2 x 33.6 x 6 Thk, HT

8шт.

6

82989331

SHIM

Front Axle 0.015

6шт.

7

82989332

SHIM

Front Axle 0.018

2шт.

8

82989335

SHIM

Front Axle 0.028

6шт.

9

15989521

BOLT,Hex, M20 x 1.5 x 120mm, Cl 8.8

2шт.

10

47659189

STOP

4 Degrees Oscillation Stop

2шт.

Used With Premium Loader

1шт.

Used With Front Fenders

1шт.

11

84299393

HEX SOC SCREW,Hex Socket Button Head, M12 x 1.75 x 35mm, Cl. 10.9

4шт.

12

47674623

CAP

Less Oscillation Stop

4шт.

Used Without Loader Ready

1шт.
