Запчасти Case IH FARMALL 130A (25.100.AI[02]) - VAR - 390509 - AXLE SUPPORT, ARTICULATION, HEAVY DUTY (25) - FRONT AXLE SYSTEM

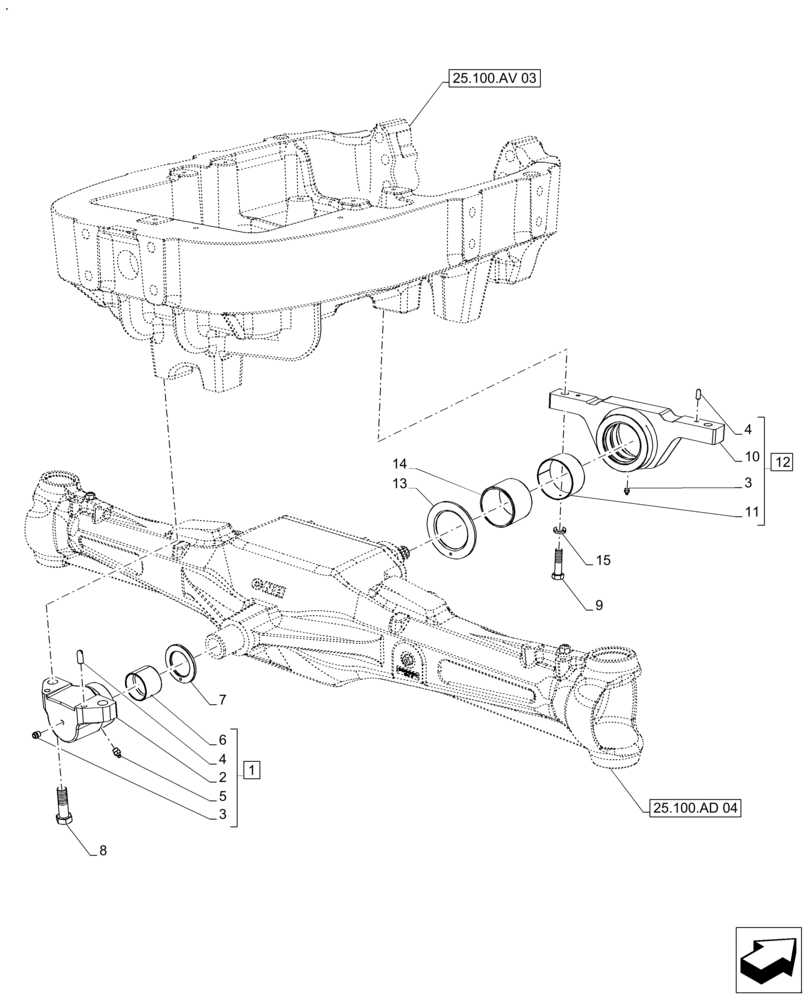

Схема запчастей Case IH FARMALL 130A - (25.100.AI[02]) - VAR - 390509 - AXLE SUPPORT, ARTICULATION, HEAVY DUTY (25) - FRONT AXLE SYSTEM
25.100.ad 04
9
13
7
11
15
1
4
10
3
2
25.100.av 03
3
12
14
4
5
8
6

Артикул

Название

Примечание

Количество

1

87311589

TRUNNION

Assy. Front Axle, Incl 2 - 6

1шт.

2

87311590

TRUNNION

Front

1шт.

3

13411117

VALVE PRESSURE RELIE,M10, Black

1шт.

4

10837710

DOWEL,M10 x 25

2шт.

5

13407211

LUBE NIPPLE,M10 x 1

1шт.

6

5101112

BUSHING,52.72mm ID x 57.16mm OD x 42mm L

1шт.

7

5140456

RING,52.8mm ID x 80mm OD x 5mm Thk

Front Axle

1шт.

8

11244637

BOLT,Hex, M18 x 1.5 x 60, 10.9

2шт.

9

15984631

BOLT,Hex, M18 x 1.5 x 70mm, Cl 10.9

2шт.

10

NSS

NOT SOLD SEPARAT

Trunion, Front Axle - Rear, Incl in 12

1шт.

11

5129385

BUSHING,99.15mm ID x 103.7mm OD x 52mm L

1шт.

12

47647978

TRUNNION

Trunnion Support, Incl 3, 4, 10, 11

1шт.

13

5136119

RING,90.3mm ID x 136mm OD x 5mm Thk

1шт.

14

5136120

BUSHING,90mm ID x 99.05mm OD x 72mm L

1шт.

15

83917225

LOCK WASHER,Helical Spring, 0.766" ID x 1.285" OD x 0.226"

2шт.

Выбрано товаров: 15
