(23.314.AH[06]) - VAR - 390509 - FRONT, DRIVE SHAFT, GUARD, 4WD, GUARD, HEAVY DUTY

Запчасти Case IH FARMALL 130A (23.314.AH[06]) - VAR - 390509 - FRONT, DRIVE SHAFT, GUARD, 4WD, GUARD, HEAVY DUTY (23) - FOUR WHEEL DRIVE SYSTEM

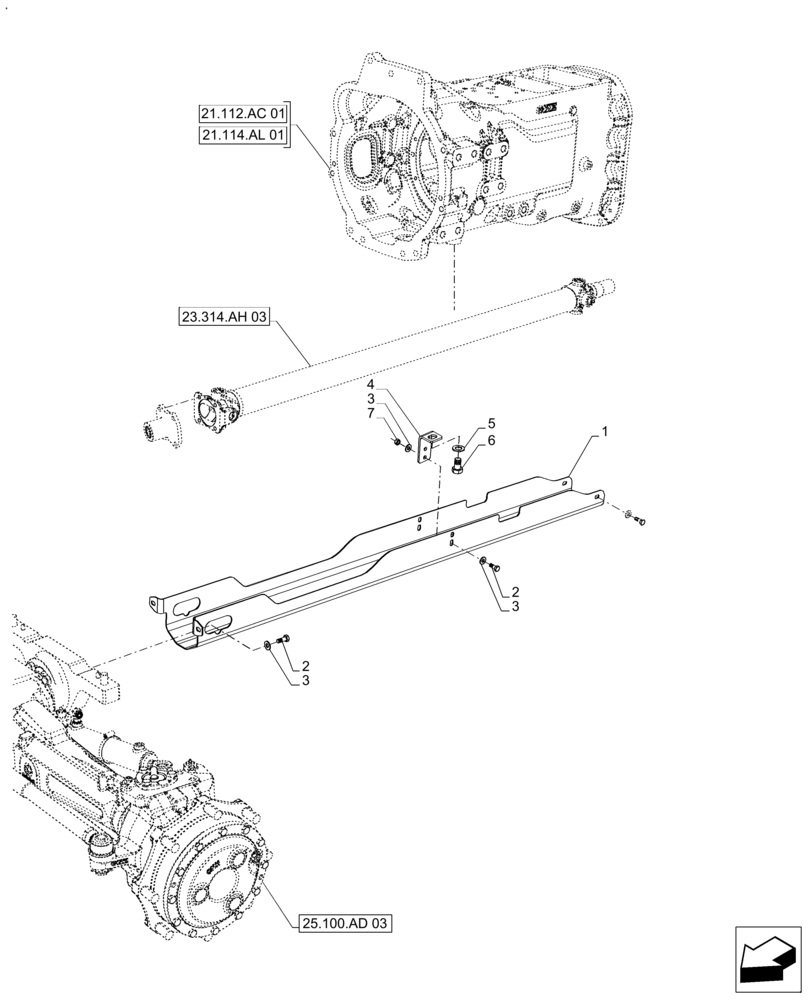

Схема запчастей Case IH FARMALL 130A - (23.314.AH[06]) - VAR - 390509 - FRONT, DRIVE SHAFT, GUARD, 4WD, GUARD, HEAVY DUTY (23) - FOUR WHEEL DRIVE SYSTEM
2
1
3
2
23.314.ah 03
3
6
5
21.112.ac 01
7
25.100.ad 03
3
21.114.al 01
4
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

47475776

GUARD

1шт.

2

43139

BOLT,M10 x 1.5 x 25mm, Cl 8.8

6шт.

3

86625253

WASHER,11mm ID x 24mm OD x 2mm Thk

8шт.

4

82985221

SUPPORT

Shield Shaft

2шт.

5

86511327

WASHER,21mm ID x 37mm OD x 3mm Thk

2шт.

6

81817784

BOLT,Hex, 3/4" - 10 x 1 1/4", Gr 5

2шт.

7

86500689

NUT,M10 x 1.5, Cl 10

2шт.

Выбрано товаров: 7
