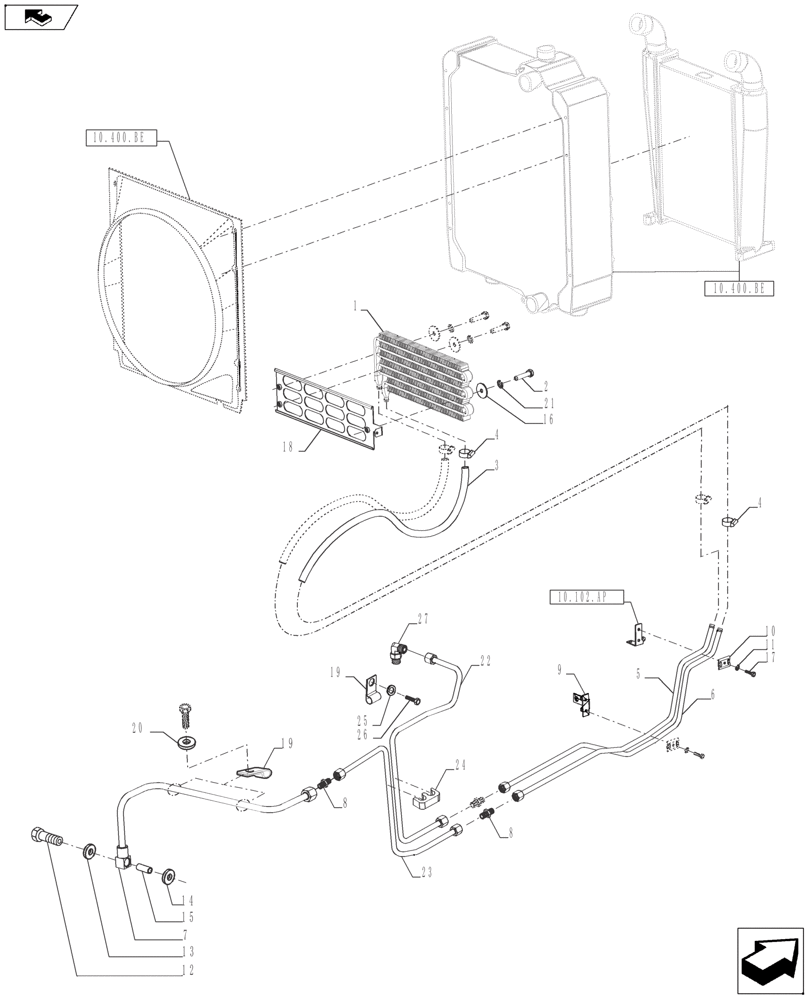

Запчасти Case IH FARMALL 125A (21.109.AD[01]) - COOLING SYSTEM - OIL - MECHANICAL (21) - TRANSMISSION

1

83945933

OIL COOLER

Cooler Assy.

1шт.

2

82859873

SCREW,M8 x 45mm, Cl 8.8

M8 x 1.25 x 45 G8.8, Oil Cooler Mounting

3шт.

3

82989381

HOSE,12.7mm ID x 1350mm L

Hose, ,Oil Cooler (CAB)

2шт.

4

82039346

HOSE CLAMP,30mm - 45mm, Worm Gear

Clamp

4шт.

5

73336439

HYD TUBE

Tube, Oil Cooler Up Assy. 4 Cyl.

1шт.

5

73336724

HYD TUBE

Oil Cooler Up Assy. 6 Cyl.

1шт.

6

73336442

HYD TUBE

Tube, Oil Cooler LO Assy. 4 Cyl.

1шт.

6

73336727

HYD TUBE

Oil Cooler LO Assy. 6 Cyl.

1шт.

7

73336436

HYD TUBE

Tube, Lubricant RR Assy

1шт.

8

82982603

HYD CONNECTOR,13/16"-16

Metric Assy

3шт.

9

82988461

SUPPORT

Side Support Assy. Steering Tubes

1шт.

10

81803118

CLAMP

Clamp

2шт.

11

86517328

LOCK WASHER,6.1mm ID x 11.8mm OD x 1.7mm Thk

2шт.

12

81879036

BANJO BOLT,9/16" - 18 x 1.34"

Tube Adaptor

1шт.

13

83900079

O-RING,0.103" Thk x 0.424" ID, -11, Cl 6, 90 Duro

1шт.

14

82895354

SEAL,13.82mm ID x 19.4mm OD x 2.59mm Thk

Seal

1шт.

15

81879012

PLASTIC-RUBBER TUBE,7.83 mm ID, 9.5 mm OD, 22 mm Length

1шт.

16

5102702

WASHER,10.5mm ID x 45mm OD x 3mm Thk

Flat Stl.

3шт.

17

10902824

BOLT,Hex, M6 x 30mm, Cl 8.8

2шт.

18

82988414

GUARD

Guard Assy., Oil Radiator

1шт.

19

83925873

CLIP,M13, M15 Bolt

Wraparound

2шт.

20

86511324

WASHER,13mm ID x 24mm OD x 2.5mm Thk

2шт.

21

83990583

LOCK WASHER,M8 x 14.8mm OD x 2.1mm Thk

2шт.

22

73336463

HYD TUBE

TUBE, OIL COOLER IN ASSY

1шт.

23

73336466

TUBE

TUBE, LUBRICANT FR ASSY

1шт.

24

83926189

CLAMP

1шт.

25

85700672

LOCK WASHER,M10

1шт.

26

15970521

BOLT,Hex, M10 x 1.25 x 20mm, Cl 8.8, Full Thd

1шт.

27

9992307

90 ELBOW,90 Degree, 13/16"-16 x 3/4"-16 Adj, ORFS

1шт.
