(10.218.AQ[01]) - INJECTION PUMP

Запчасти Case IH FARMALL 125A (10.218.AQ[01]) - INJECTION PUMP (10) - ENGINE

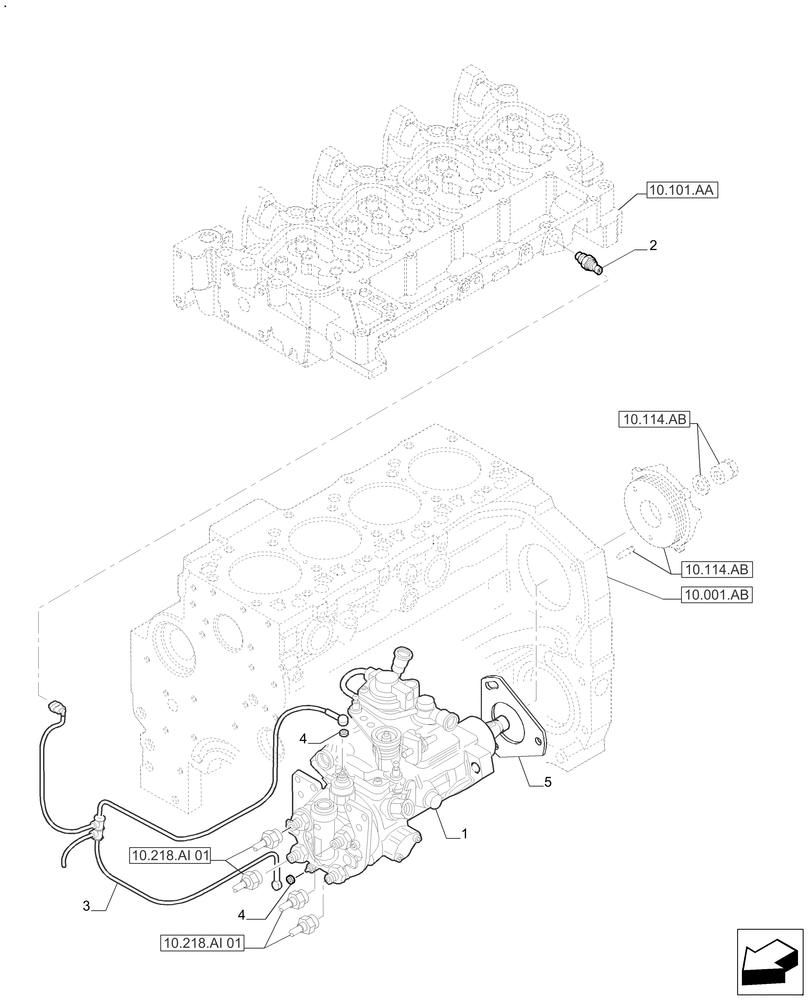

Схема запчастей Case IH FARMALL 125A - (10.218.AQ[01]) - INJECTION PUMP (10) - ENGINE
3
10.101.aa
10.218.ai 01
10.001.ab
4
10.218.ai 01
10.114.ab
2
4
1
10.114.ab
5
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

2856745

FUEL INJECTION PUMP

FARMALL 110A

1шт.

1

2856745R

REMAN-INJECTION PUMP

Reman New PN 2856745

1шт.

1

2856745C

CORE-INJECTION PUMP

Return Number

1шт.

1

84293581

FUEL INJECTION PUMP

FARMALL 120A

1шт.

1

84293581R

REMAN-FUEL INJ PUMP

Reman for New PN 84293581

1шт.

1

84293581C

CORE-FUEL INJ PUMP

Return Number

1шт.

1

2855392

FUEL INJECTION PUMP

FARMALL 125A

1шт.

1

2855392R

REMAN-INJECTION PUMP

Reman for New PN 2855392

1шт.

1

2855392C

CORE-INJECTION PUMP

Return Number

1шт.

1

2855394

FUEL INJECTION PUMP

FARMALL 140A

1шт.

1

2855394R

REMAN-INJECTION PUMP

Reman New PN 2855394

1шт.

1

2855394C

CORE-INJECTION PUMP

Return Number

1шт.

87474152

SOLENOID

shut off

1шт.

2

2856350

SENSOR

KSB Water Temperature

1шт.

3

2852088

WIRE HARNESS

KSB

1шт.

4

2852089

NUT,M5

2шт.

5

504083433

GASKET

Fuel Pump

1шт.
