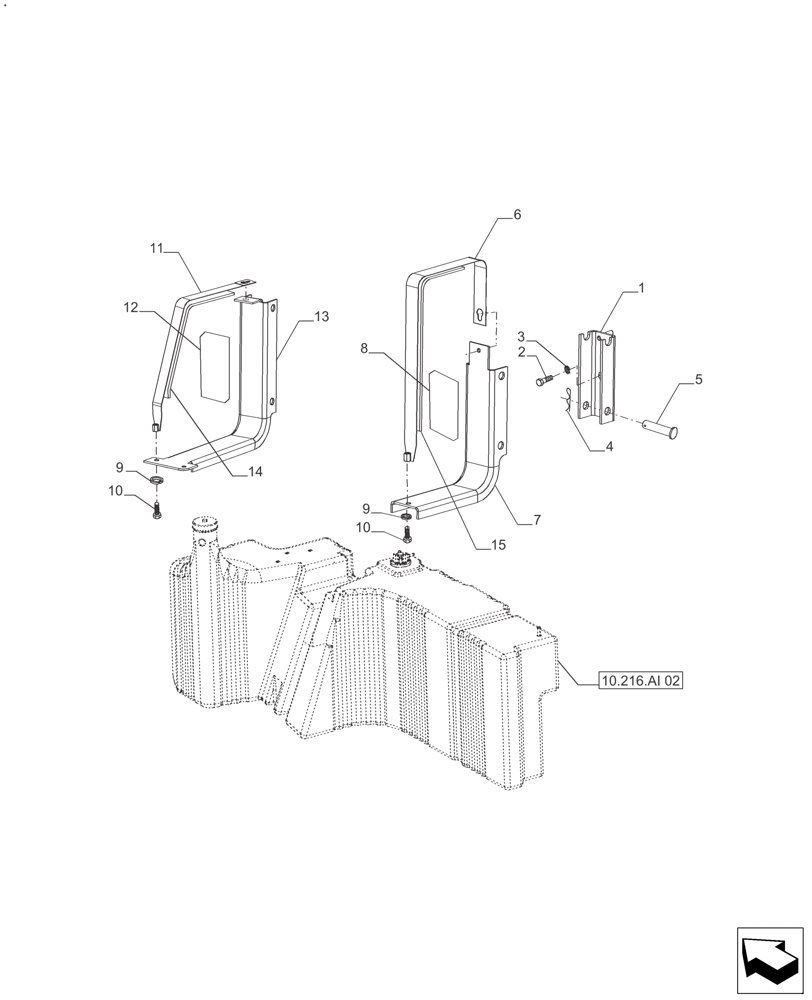

Запчасти Case IH FARMALL 125A (10.216.AI[04]) - FUEL TANK, SUPPORT - 6 CYL. (10) - ENGINE

1

82013070

SUPPORT

Rear

1шт.

2

83904573

BOLT,Hex, 3/4" - 16 x 1.25"

1шт.

3

87340

LOCK WASHER,Helical Spring, 0.759" ID, CST, ZND

1шт.

4

83917618

COTTER PIN,1/8" x 2 5/16"

2шт.

5

82011818

CLEVIS PIN,M19 x 107

2шт.

6

73336692

STRAP

Rear Assy. - Tank

1шт.

7

73336689

SUPPORT

Assy. Rear Tank

1шт.

8

73335709

PAD

Pad Fuel tank Support Rear

1шт.

9

85700672

LOCK WASHER,M10

2шт.

10

120115

BOLT,M10 x 1.5 x 76.58mm, Cl 8.8

2шт.

11

73336684

STRAP

Front Assy. Tank

1шт.

12

73335710

RUBBER PAD

Front Pad

1шт.

13

73336681

SUPPORT

Front Assy. Tank

1шт.

14

82989105

RUBBER PAD

Front

1шт.

15

82989106

RUBBER PAD

Rear

1шт.
