Запчасти Case IH FARMALL 125A (90.100.AU[02]) - HOOD & PANEL ASSY 6 CYL. (90) - PLATFORM, CAB, BODYWORK AND DECALS

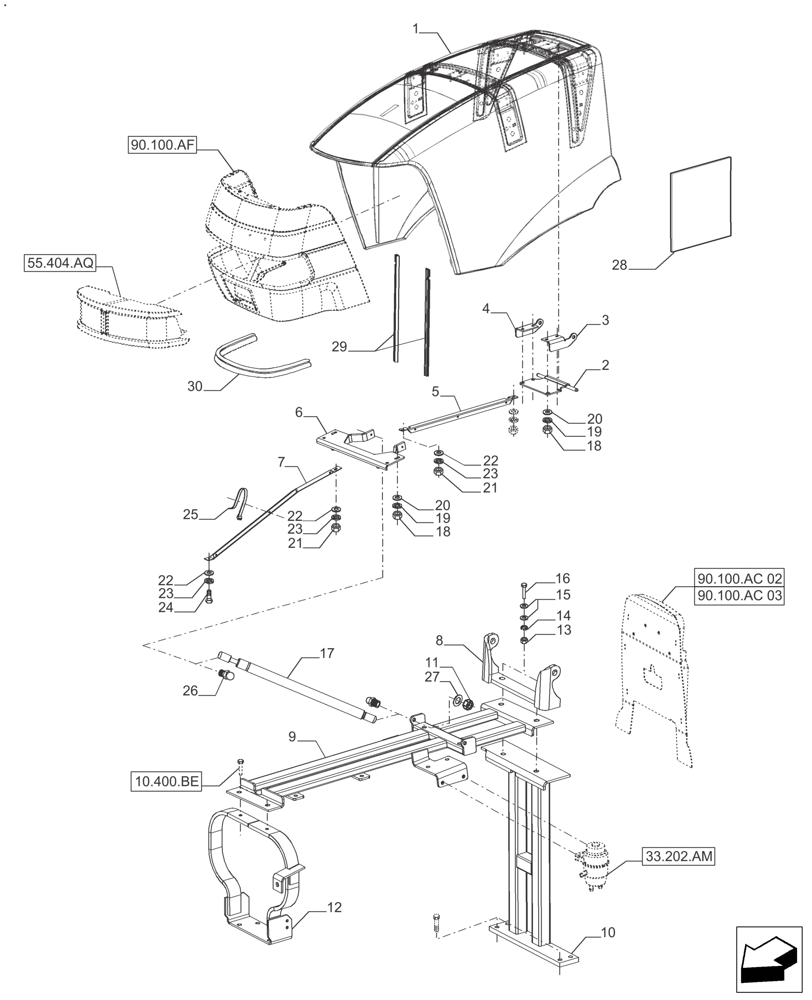

Схема запчастей Case IH FARMALL 125A - (90.100.AU[02]) - HOOD & PANEL ASSY 6 CYL. (90) - PLATFORM, CAB, BODYWORK AND DECALS
4
22
15
16
18
12
29
1
90.100.ac 03
6
14
2
25
90.100.af
55.404.aq
27
24
28
20
26
22
23
20
8
23
30
7
22
10
19
18
17
9
33.202.am
21
5
90.100.ac 02
3
23
10.400.be
19
21
13
11

Артикул

Название

Примечание

Количество

1

87348596

ENGINE HOOD

Panel Assy.

1шт.

2

73336596

SUPPORT

Assy. Base

1шт.

3

73338251

SUPPORT

Hinge Hood LH

1шт.

4

73338249

SUPPORT

Hinge Hood RH

1шт.

5

82035291

SUPPORT

1шт.

6

73338239

SUPPORT

Support Front Hood

1шт.

7

73338407

SUPPORT

1шт.

8

73336758

HINGE

1шт.

9

73338232

SUPPORT

Support Assy Air Filter

1шт.

10

47845806

SUPPORT

Hood Assy. L/Cab

1шт.

10

47798441

SUPPORT

Assy. Front Hood, W/Cab

1шт.

11

83958007

NUT,M8, G8

2шт.

12

73337626

SUPPORT

1шт.

13

86500689

NUT,M10 x 1.5, Cl 10

2шт.

14

85700672

LOCK WASHER,M10

2шт.

15

86625253

WASHER,11mm ID x 24mm OD x 2mm Thk

4шт.

16

43248

BOLT,Hex, M10 x 1.5 x 40mm, Cl 10.9

2шт.

17

82036570

GAS STRUT

2шт.

18

11701711

NUT,Hex, M10, Cl 8, ZND

8шт.

19

85700672

LOCK WASHER,M10

8шт.

20

14496601

WASHER,10.5mm ID x 21mm OD x 2mm Thk

8шт.

21

83907174

NUT,M6, G8

3шт.

22

83926806

WASHER,1/4", SAE

4шт.

23

86517328

LOCK WASHER,6.1mm ID x 11.8mm OD x 1.7mm Thk

4шт.

24

10902021

BOLT,Hex, M6 x 12mm, Cl 8.8

1шт.

25

83933061

STRAP

5шт.

26

83952214

BALL STUD,M8 x 29.5mm OAL

4шт.

27

81845769

LOCK WASHER,5/16"

2шт.

28

82989742

INSULATION

2шт.

29

73337107

SEAL

Hood to Radiator Side

2шт.

30

73338679

MOLDING

Hood Low

1шт.

Выбрано товаров: 31
