Запчасти Case IH FARMALL 125A (55.202.AY) - THERMOSTART (55) - ELECTRICAL SYSTEMS

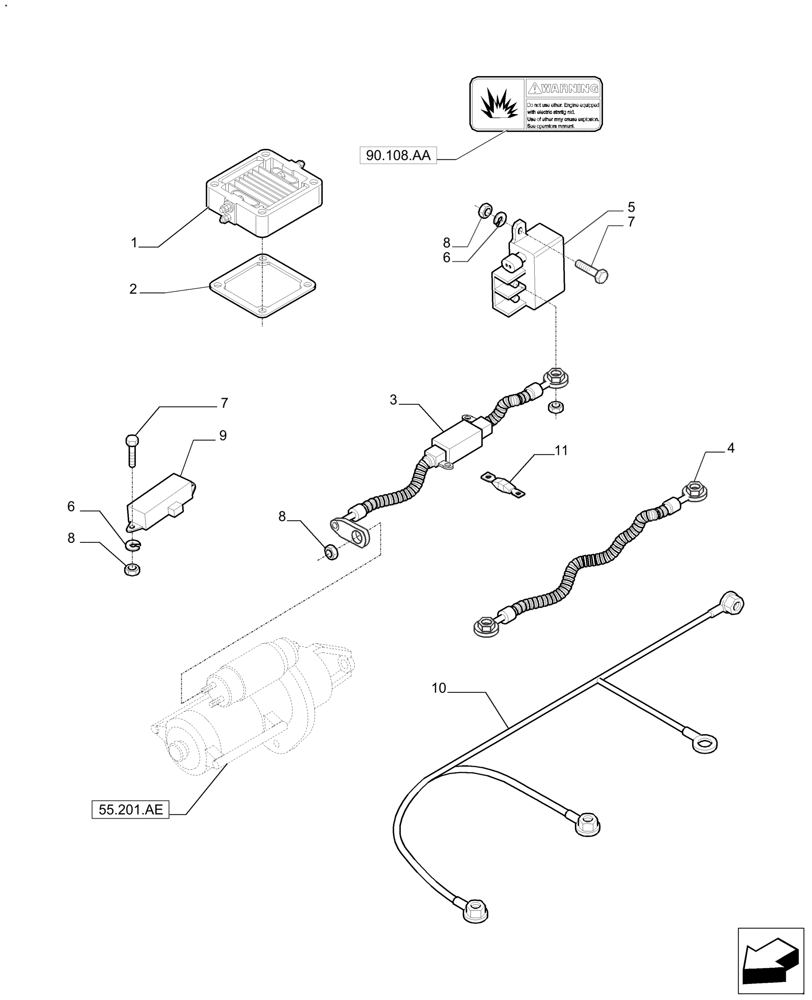

Схема запчастей Case IH FARMALL 125A - (55.202.AY) - THERMOSTART (55) - ELECTRICAL SYSTEMS
2
8
5
8
7
90.108.aa
4
3
11
6
7
8
1
9
6
10
55.201.ae

Артикул

Название

Примечание

Количество

1

2831019

HEATER,24V

1шт.

2

4899921

GASKET,1.2mm Thk

2шт.

3

82989715

WIRE HARNESS

HARNESS ASSY THERMOSTARTER, Start Year: 20-DEC-12

1шт.

4

82989716

WIRE HARNESS

HARNESS ASSY FEED THERMOSTARTER

1шт.

5

86619908

RELAY,12V, 150A

Assy. Grid Heater

1шт.

6

83935046

LOCK WASHER,Helical Spring, 1/4" ID x 0.489" OD x 0.062" Thk

4шт.

7

86508568

BOLT,Hex, M6 x 1 x 16mm, Cl 8.8

4шт.

8

86500688

NUT,Hex, M6 x 1.0, Cl 10.9

5шт.

9

47132002

HEATER

Grid Heater

1шт.

10

82037654

WIRE HARNESS,435mm L

Grid Heater Power

1шт.

11

87422637

FUSE,125A, Midival

125 AMP

1шт.

Выбрано товаров: 11
