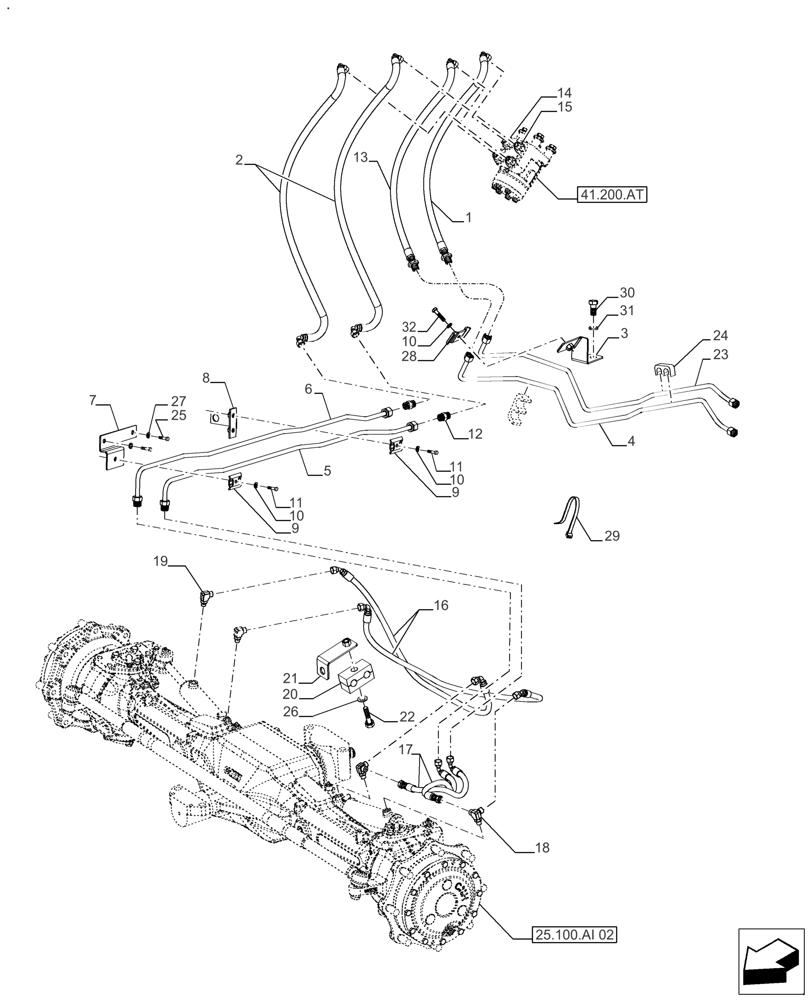

Запчасти Case IH FARMALL 125A (41.200.AO[02]) - POWER STEERING LINES POWER SHUTTLE/MECHANICAL 6 CYL. - 2WD/4WD (41) - STEERING

1

48036758

HOSE

Front R.H. Hose Assy. Steering (ROPS) Power Shuttle

1шт.

1

48036758

HOSE

Front R.H. Hose Assy. Steering (ROPS) Mechanical

2шт.

1

48036027

HOSE

Front R.H. Hose Assy. Steering (CAB) Power Shuttle

1шт.

1

48036027

HOSE

Front R.H. Hose Assy. Steering (CAB) Mechanical

1шт.

2

48036031

HOSE

Front L.H. Hose Assy. Steering

2шт.

3

73338522

SUPPORT

Support Assy. Steering Tubes, Start Year: 18-JAN-13

1шт.

4

73336825

TUBE

Rear Lower Tube Assy. Steering

1шт.

5

73336850

STEERING COLUMN

Tube Assy. FR LO Strng LH

1шт.

6

73336847

STEERING COLUMN

Tube Assy. FR UP Strng RH

1шт.

7

73336988

SUPPORT

Support Assy PS Tube

1шт.

8

82988461

SUPPORT

Side Support Assy. Steering Tubes

1шт.

9

85700613

CLAMP,1.75mm W x 0.20mm Thk

2шт.

10

86517328

LOCK WASHER,6.1mm ID x 11.8mm OD x 1.7mm Thk

3шт.

11

10902821

SCREW,Hex, M6 x 30mm, Cl 8.8

Mechanical

3шт.

11

10902821

SCREW,Hex, M6 x 30mm, Cl 8.8

Power Shuttle

2шт.

12

84431546

UNION,11/16"-16 ORFS

2шт.

13

47922911

HOSE

Steering Column Assy. Return Line (CAB) Mechanical

1шт.

13

47938097

Steering Column, Front RH Hose (ROPS) Mechanical

1шт.

14

82016497

HYD CONNECTOR,13/16"-16 ORFS x M22 x 1.5

1шт.

15

82016499

HYD CONNECTOR,11/16"-16 x M18 x 1.5

2шт.

16

73338319

HOSE

Hose Hyd Steer Crossover 6 Cyl. 4WD

2шт.

17

82036370

HOSE

2шт.

18

5188443

90 ELBOW

4WD

2шт.

19

47127165

90 ELBOW

4WD

2шт.

20

87000151

CLAMP

4WD

1шт.

21

73338338

SUPPORT

4WD

1шт.

22

43130

BOLT,Hex, M8 x 1.25 x 50mm, Cl 8.8

4WD

1шт.

23

73336822

TUBE

Rear Upper Tube Assy Steering 4/6 Cyl. Mechanical

1шт.

24

83926189

CLAMP

Mechanical

2шт.

24

83926189

CLAMP

Power Shuttle

1шт.

25

120103

BOLT,M8 x 1.25 x 16mm, Cl 8.8

2шт.

26

10571779

LOCK WASHER,Helical Spring, 8.10mm ID x 14.80mm OD x 2.00mm, ZNM

1шт.

27

86625263

WASHER,9mm ID x 20mm OD x 1.6mm Thk

4WD

2шт.

28

73338524

CLAMP

Mechanical

1шт.

28

81843670

CLIP,0.62", 0.34" Bolt Hole, P Type

Power Shuttle, Not Shown

1шт.

29

83933061

STRAP

, Start Year: 14-DEC-12

1шт.

30

300388

BOLT,Hex, M12 x 1.75 x 25mm, Cl 8.8

1шт.

31

10517074

LOCK WASHER,12.2mm ID x 21.1mm OD x 3.1mm Thk

1шт.

32

86508568

BOLT,Hex, M6 x 1 x 16mm, Cl 8.8

Power Shuttle

1шт.
