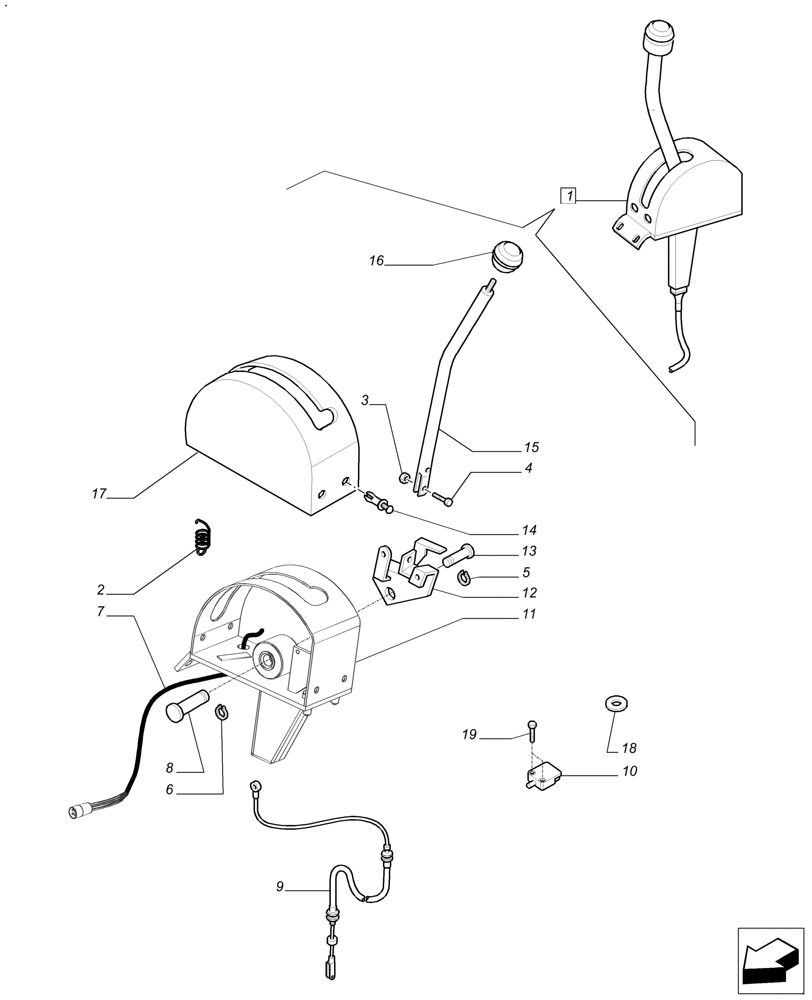

Запчасти Case IH FARMALL 125A (31.104.AY[02]) - PTO CONTROLS - BREAKDOWN, CAB (31) - IMPLEMENT POWER TAKE OFF

1

73335658

LEVER

Control Lever Assy, Incl 2 - 19

1шт.

2

5098823

SPRING,Extension, 18mm OD x 30mm L

spring

1шт.

3

12574211

NUT,M6 x 1, Cl 8

Lock Nut M6 x 1, Cl 8

1шт.

4

10902811

BOLT,M6 x 30, 5.8

Screw Hex, M6 x 30, 8.8

1шт.

5

86507012

SNAP RING,M6, Ext

Snap Ring M6, Ext

1шт.

6

11066076

SNAP RING,M12, Ext

Snap Ring M12, Ext

1шт.

7

84148267

ELECTRIC CABLE

1шт.

8

5098020

PTO SHAFT,11.98mm OD x 46.5mm L

Hub

1шт.

9

84146525

CABLE,1350mm L

1350mm L

1шт.

10

5093385

PUSH BUTTON SWITCH

1шт.

11

NSS

NOT SOLD SEPARAT

Body, Incl in 1

1шт.

12

87611346

BRACKET

Support

1шт.

13

5098021

PIN,6mm OD x 24.6mm L

Pin

1шт.

14

5098024

RIVET,6mm OD x 11mm L

Rivet

4шт.

15

87611329

LEVER

Lever

1шт.

16

5171717

KNOB

1шт.

17

5098019

COVER

Cover

1шт.

18

14499301

WASHER,M6 x 12.00mm OD x 1.60mm Overwrite

1шт.

19

10445721

SCREW,Hex, M4 x 25mm, Cl 8.8, Full Thd

2шт.
