Запчасти Case IH FARMALL 125A (25.108.AB[02]) - GEAR REDUCTION UNIT - FRONT AXLE - HEAVY DUTY (125 & 140 HP) (25) - FRONT AXLE SYSTEM

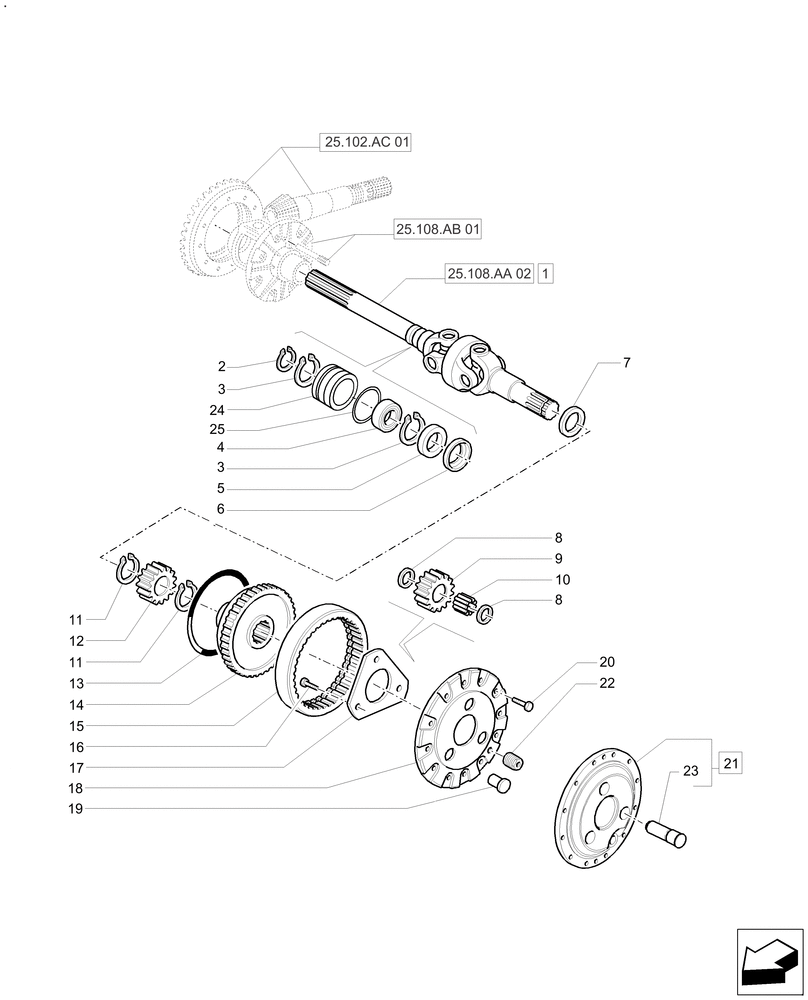

Схема запчастей Case IH FARMALL 125A - (25.108.AB[02]) - GEAR REDUCTION UNIT - FRONT AXLE - HEAVY DUTY (125 & 140 HP) (25) - FRONT AXLE SYSTEM
12
8
5
8
19
22
25.102.ac 01
24
9
11
4
15
25.108.aa 02
18
21
11
6
16
2
10
17
3
7
25.108.ab 01
13
3
20
14
23
25
1

Артикул

Название

Примечание

Количество

1

87579231

AXLE-SHAFT, ARTICULA,Yoke, 671mm L

LH

2шт.

1

87579229

AXLE-SHAFT, ARTICULA,Yoke, 732.50mm L

RH

2шт.

2

370006

SNAP RING,M40, Ext

2шт.

3

11061376

SNAP RING,M68, Int

4шт.

4

28042480

BALL BEARING,40.00mm x 68.00mm x 15.00mm

40 x 68 x 15

2шт.

5

84166622

SEAL,43.1mm ID x 60mm OD x 17.2mm Thk

2шт.

6

5109311

SEAL PROTECTION,45.2mm ID x 68mm OD x 1mm Thk

2шт.

7

5184118

SEAL,42mm ID x 62mm OD x 21.5mm Thk

62 x 42 x 21.5

2шт.

8

5145499

THRUST WASHER,30mm ID x 50mm OD x 0.8mm Thk

12шт.

9

5145497

PLANETARY GEAR,25T

6шт.

10

5145492

ROLLER BEARING,30.3mm ID x 40.3mm OD x 29.8mm W

6шт.

11

5140018

SNAP RING,M30, Ext

D=30

4шт.

12

5145501

SUN GEAR,16T

2шт.

13

5151438

LOCKING RING,222mm ID, Int

2шт.

14

84224948

NOTCHED DISK

2шт.

15

5191770

RING GEAR

2шт.

16

14274431

BOLT,Hex, M12 x 1.25 x 25mm, Cl 10.9

6шт.

17

5152324

LOCKING RING,4mm Thk

2шт.

18

87310820

CARRIER,Planetary

2шт.

19

5165455

PIN,30.3mm OD x 63mm L

63mm l.

6шт.

20

14233734

BOLT,Hex, M10 x 1.25 x 35mm, Cl 10.9, Full Thd

24шт.

21

87310820

CARRIER,Planetary

Incl 23

2шт.

22

14326211

PLUG,M22 x 1.50, R50, ZND

Magnetic

1шт.

23

87304540

PIN,30.3mm OD x 68mm L

68mm l.

6шт.

24

84197406

BUSHING

2шт.

25

14465380

O-RING,0.139" Thk x 3.109" ID, -235, Cl 5, 75 Duro

2шт.

Выбрано товаров: 26
