(25.108.AA[02]) - DRIVE SHAFT - FRONT AXLE - HEAVY DUTY (125 & 140 HP)

Запчасти Case IH FARMALL 125A (25.108.AA[02]) - DRIVE SHAFT - FRONT AXLE - HEAVY DUTY (125 & 140 HP) (25) - FRONT AXLE SYSTEM

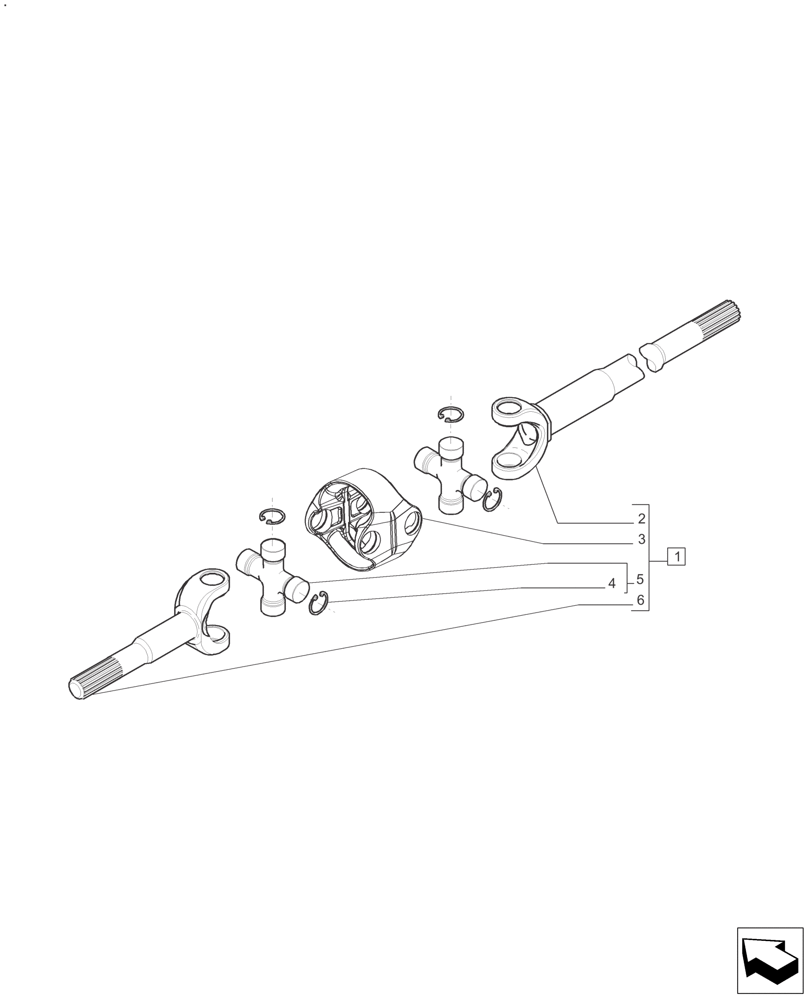

Схема запчастей Case IH FARMALL 125A - (25.108.AA[02]) - DRIVE SHAFT - FRONT AXLE - HEAVY DUTY (125 & 140 HP) (25) - FRONT AXLE SYSTEM
2
4
5
6
3
1
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

87579225

SHAFT

ASSY Double Joint LH, Incl 2 - 6

1шт.

1

87579220

SHAFT

ASSY Double Joint RH, Incl 2 - 6

1шт.

2

87579231

AXLE-SHAFT, ARTICULA,Yoke, 671mm L

LH

1шт.

2

87579229

AXLE-SHAFT, ARTICULA,Yoke, 732.50mm L

RH

1шт.

3

87361042

YOKE

Central Body

1шт.

4

5191548

CIRCLIP

8шт.

5

5191547

U-JOINT SPIDER

2шт.

6

84201642

SHORT SHAFT FORK

Wheel Side Fork

1шт.
