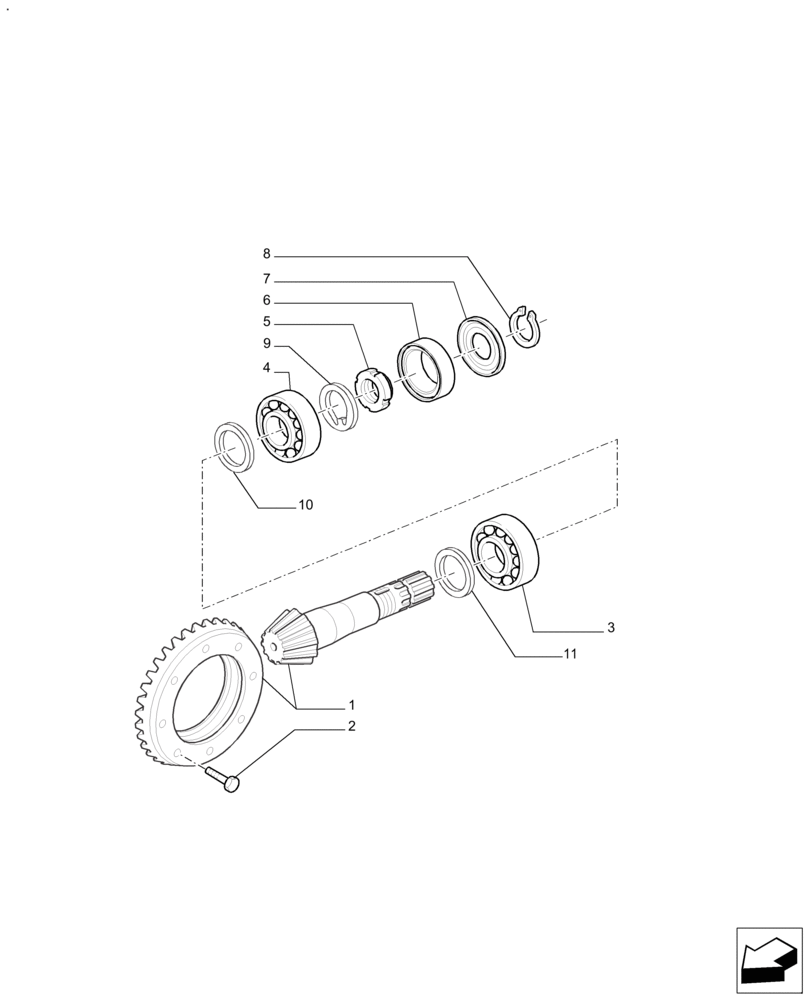

Запчасти Case IH FARMALL 125A (25.102.AC[02]) - BEVEL GEAR - FRONT AXLE / PINION SET - HEAVY DUTY (125 & 140 HP) (25) - FRONT AXLE SYSTEM

1

84393566

GEAR

Bevel Assy.

1шт.

Alternate PN 47589135

1шт.

2

14274434

LOCK BOLT,Hex, M12 x 1.25 x 25mm, Cl 10.9, Full Thd

8шт.

3

5143109

TAPERED BEARING,41.27mm x 82.55mm x 26.54mm

41.275 x 82.550 x 26.543

1шт.

4

5133776

TAPERED BEARING,35.00mm x 72.00mm x 28.00mm

35 x 72 x 28

1шт.

5

84289068

CROWN NUT,M35 x 1.5

M35 x 19.5

1шт.

6

87349652

SEAL,32.5mm ID x 75mm OD x 15mm Thk

32.5 x 75 x 14.5

1шт.

7

87527839

SEAL PROTECTION

1шт.

8

11067876

SNAP RING,M30, Ext

1шт.

9

84285936

SPECIAL WASHER

1шт.

10

4997456

SHIM,35.1mm ID x 43mm OD x 2.5mm Thk

1шт.

11

5087435

SHIM KIT

1шт.
