(25.100.AI[03]) - FRONT AXLE, DIFFERENTIAL, CARRIER

Запчасти Case IH FARMALL 125A (25.100.AI[03]) - FRONT AXLE, DIFFERENTIAL, CARRIER (25) - FRONT AXLE SYSTEM

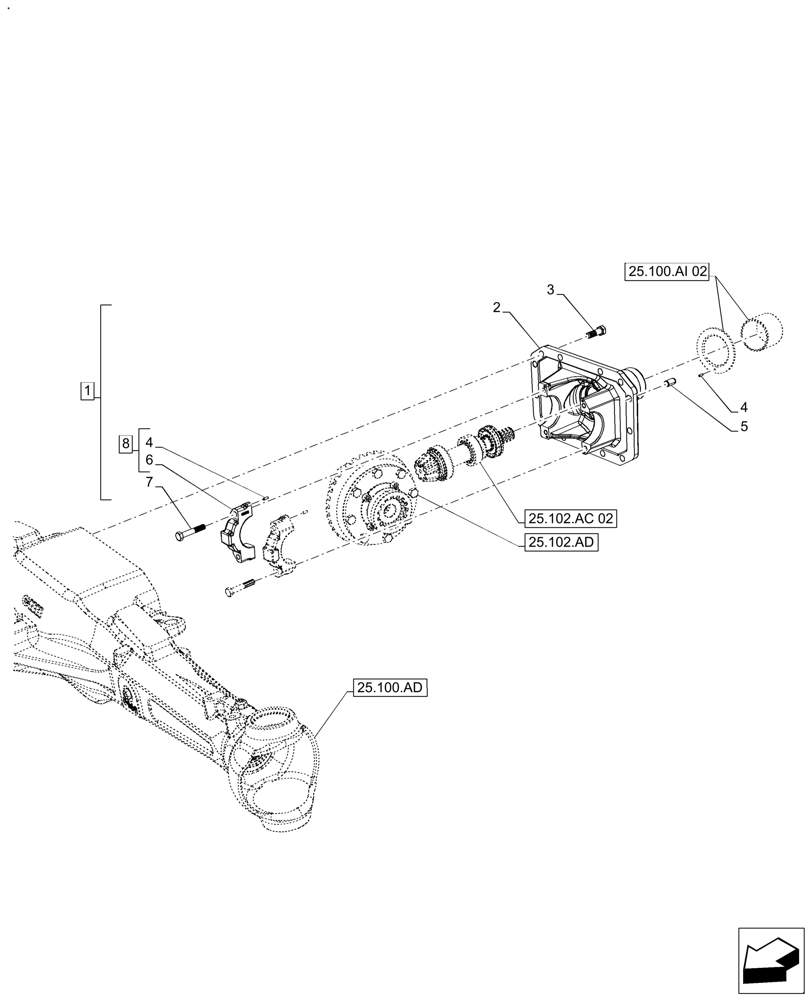

Схема запчастей Case IH FARMALL 125A - (25.100.AI[03]) - FRONT AXLE, DIFFERENTIAL, CARRIER (25) - FRONT AXLE SYSTEM
25.102.ad
4
3
6
7
2
8
5
1
4
25.100.ad
25.102.ac 02
25.100.ai 02
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

84218636

AXLE SUPPORT

Incl 2 - 8

1шт.

2

NSS

NOT SOLD SEPARAT

Incl in 1

1шт.

3

16217734

BOLT,Hex, M16 x 1.5 x 50mm, Cl 10.9, Full Thd

10шт.

4

4966244

PIN,5mm OD x 15mm L

5шт.

5

5174376

DOWEL,M16 x 30

2шт.

6

NSS

NOT SOLD SEPARAT

Incl in 8

2шт.

7

14275334

BOLT,Lock, Hex, M12 x 1.25 x 70mm, Cl 10.9

4шт.

8

NSS

NOT SOLD SEPARAT

Incl in 1

2шт.
