Запчасти Case IH FARMALL 120U (90.151.210) - VAR - 332147, 335387, 339434, 391246 - CAB, MIRROR, INTERNAL (90) - PLATFORM, CAB, BODYWORK AND DECALS

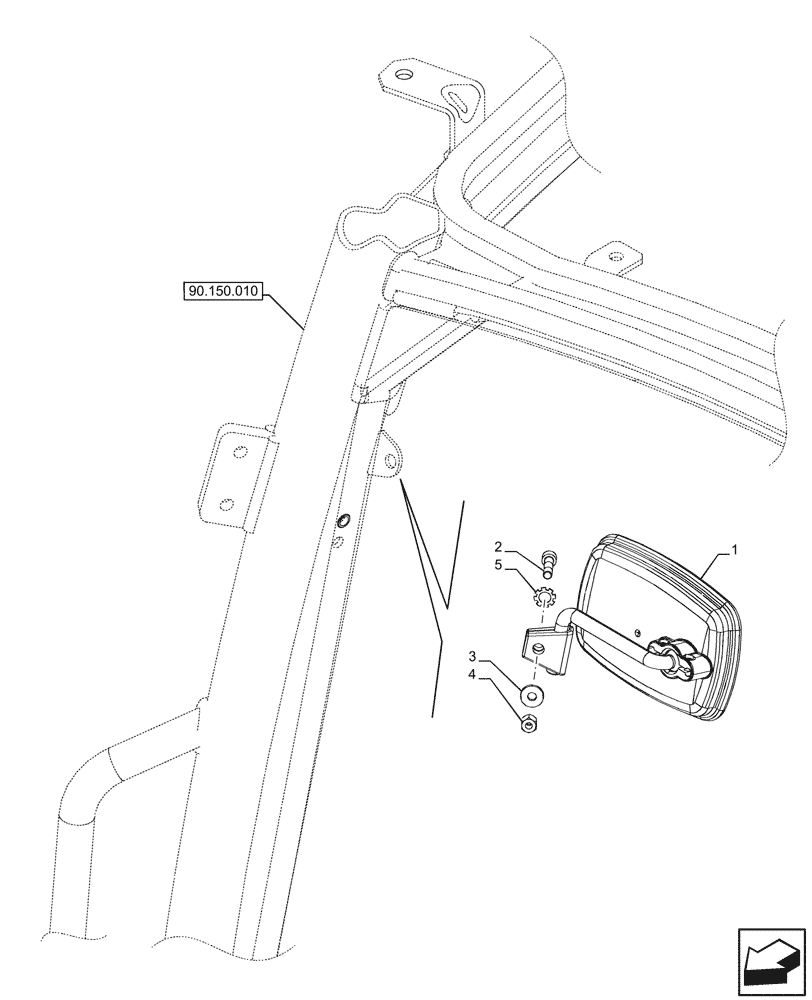

Схема запчастей Case IH FARMALL 120U - (90.151.210) - VAR - 332147, 335387, 339434, 391246 - CAB, MIRROR, INTERNAL (90) - PLATFORM, CAB, BODYWORK AND DECALS
90.150.010
3
1
5
2
4

Артикул

Название

Примечание

Количество

1

87665407

REAR VIEW MIRROR

1шт.

2

14305424

HEX SOC SCREW,M6 x 25mm, Cl 8.8, Full Thd

1шт.

3

12646604

WASHER,6.15mm ID x 15mm OD x 1.5mm Thk

1шт.

4

12574211

NUT,M6 x 1, Cl 8

1шт.

5

5182303

WASHER,8.4mm ID x 15mm OD x 0.8mm Thk

1шт.

Выбрано товаров: 5
