(90.151.170) - VAR - 332147, 339434 - PASSENGER SEAT, BELT

Запчасти Case IH FARMALL 120U (90.151.170) - VAR - 332147, 339434 - PASSENGER SEAT, BELT (90) - PLATFORM, CAB, BODYWORK AND DECALS

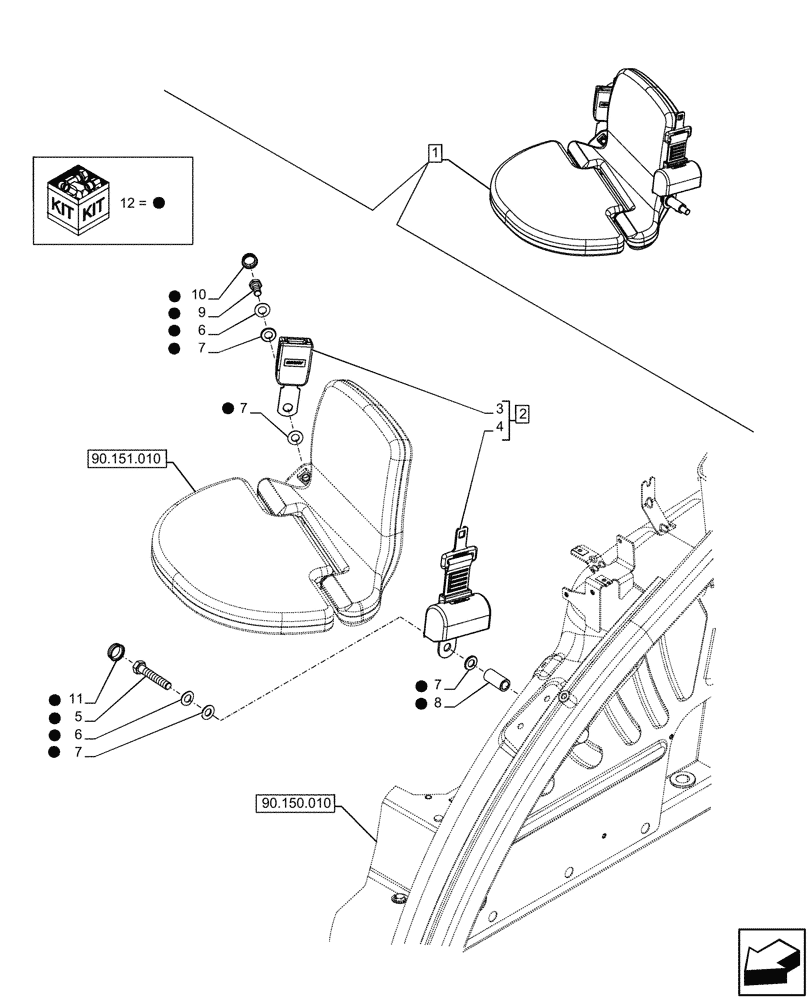

Схема запчастей Case IH FARMALL 120U - (90.151.170) - VAR - 332147, 339434 - PASSENGER SEAT, BELT (90) - PLATFORM, CAB, BODYWORK AND DECALS
90.151.010
12
12
12
12
4
12
12
8
1
6
12
7
12
3
12
12
12
9
10
7
2
12
6
7
5
11
7
90.150.010
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

47564639

INSTRUCTIONAL SEAT

SEAT ASSY, Fabric, Wheat, Incl 2 - 12

1шт.

2

84398541

SEAT BELT,49mm W x 1250mm L

ASSY, Incl 3, 4

1шт.

3

NSS

NOT SOLD SEPARAT

Belt, Incl in 2

1шт.

4

NSS

NOT SOLD SEPARAT

Belt, Incl in 2

1шт.

5

84467683

BOLT,Hex, M12 x 1.25 x 70mm, Cl 8.8

M12 x 1.25 x 70mm

1шт.

6

84467678

WASHER,13mm ID x 24mm OD x 1.2mm Thk

13mm x 24mm x 1.2mm

2шт.

7

84358390

WASHER,12.5mm ID x 25mm OD x 2mm Thk

2шт.

8

84413190

SPACER,20mm ID x 42mm OD x 13mm L

1шт.

9

5080270

SCREW,7/16 UNF x 25mm

7/16 UNF x 25mm 7/16 UNF x 25

1шт.

10

5080271

COVER,17.5mm ID

17.5mm ID 17.5mm ID

1шт.

11

84409814

PLUG,M12 x 1.25

M12 x 1.25mm

1шт.

12

84470879

KIT

Hardware for Instructional Seat Belt, Incl 5 - 11

1шт.
