(90.124.140) - VAR - 758312 - SUSPENSION SEAT, FRAME, PREMIUM

Запчасти Case IH FARMALL 120U (90.124.140) - VAR - 758312 - SUSPENSION SEAT, FRAME, PREMIUM (90) - PLATFORM, CAB, BODYWORK AND DECALS

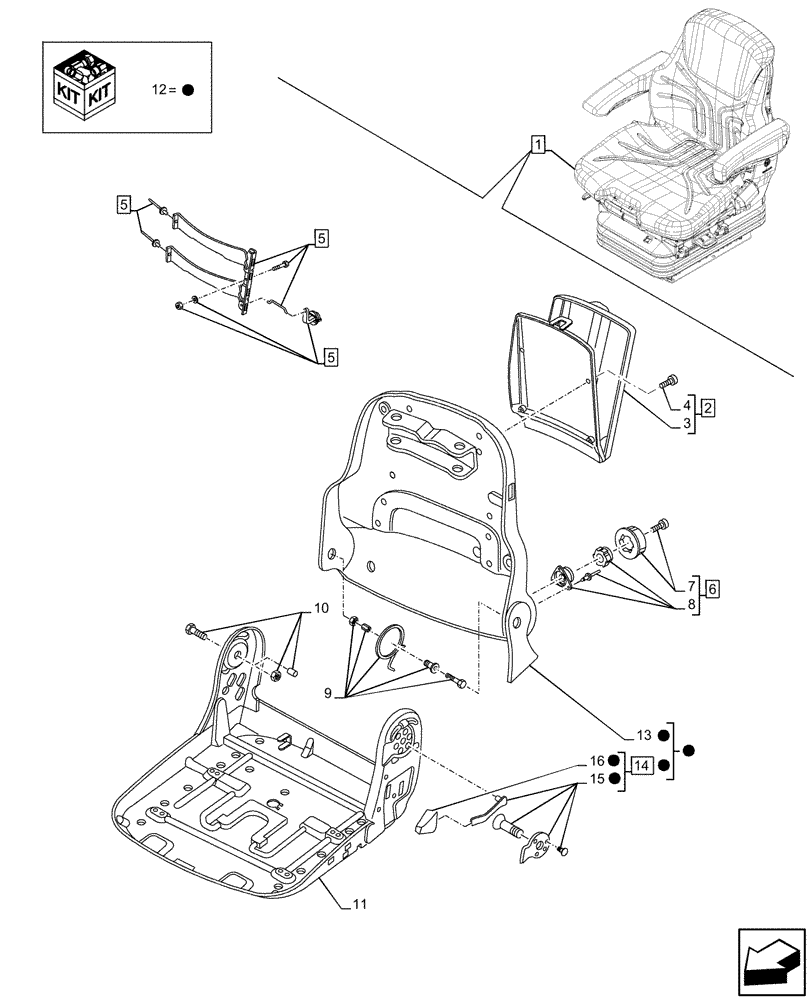

Схема запчастей Case IH FARMALL 120U - (90.124.140) - VAR - 758312 - SUSPENSION SEAT, FRAME, PREMIUM (90) - PLATFORM, CAB, BODYWORK AND DECALS
8
4
15
16
12
13
5
12
9
12
14
7
12
5
5
11
10
1
6
3
12
12
2
12
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

47476148

DRIVER SEAT

ASSY, Incl 2 - 16

1шт.

Air Suspension, W/ Safety Switch, W/ Armrest

1шт.

See Driver Seat Components also in Section, Subsection 55.512, 90.124, 90.151

1шт.

2

71491415

UTILITY HOLDER

ASSY; Incl 3, 4

1шт.

3

NSS

NOT SOLD SEPARAT

Pouch Document, Incl in 2

1шт.

4

84247569

REPAIR KIT

1шт.

5

345767A1

SUPPORT

ASSY, Incl 6 - 8

1шт.

6

84191199

ACTUATOR

ASSY, Incl 7, 8

1шт.

7

82034964

HANDLE

1шт.

8

NSS

NOT SOLD SEPARAT

Actuation, Incl in 6

1шт.

9

84191131

SET OF PARTS

1шт.

10

84280032

SCREW

1шт.

11

84191188

REPAIR KIT

1шт.

12

84255306

KIT

SERVICEABLE KIT, Incl 13 - 16

1шт.

13

NSS

NOT SOLD SEPARAT

Backrest, Incl in 12

1шт.

14

84255307

ADAPTER

ASSY, Incl 15, 16

1шт.

15

NSS

NOT SOLD SEPARAT

Actuation, Incl in 14

1шт.

16

345752A1

HANDLE

1шт.
