(90.124.130) - VAR - 758312 - SUSPENSION SEAT, PREMIUM, CUSHION

Запчасти Case IH FARMALL 120U (90.124.130) - VAR - 758312 - SUSPENSION SEAT, PREMIUM, CUSHION (90) - PLATFORM, CAB, BODYWORK AND DECALS

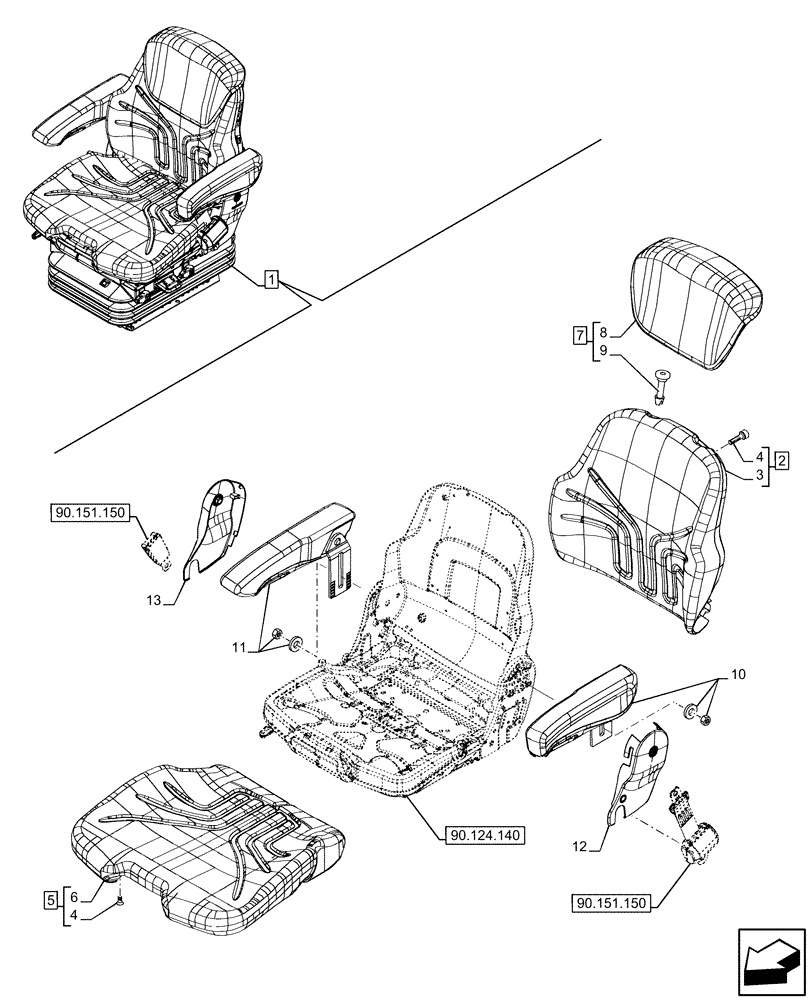

Схема запчастей Case IH FARMALL 120U - (90.124.130) - VAR - 758312 - SUSPENSION SEAT, PREMIUM, CUSHION (90) - PLATFORM, CAB, BODYWORK AND DECALS
90.124.140
6
13
7
5
2
10
8
1
4
9
12
11
4
3
90.151.150
90.151.150
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

47476148

DRIVER SEAT

ASSY, Incl 2 - 13

1шт.

Air Suspension, W/ Safety Switch, W/ Armrest

1шт.

See Driver Seat Components also in Section, Subsection 55.512, 90.124, 90.151

1шт.

2

47539982

BACKREST

ASSY, Incl 3, 4

1шт.

3

NSS

NOT SOLD SEPARAT

Backrest, Incl in 2

1шт.

4

84191200

SET OF PARTS

1шт.

5

47540001

CUSHION

ASSY, Incl 4, 6

1шт.

6

NSS

NOT SOLD SEPARAT

Cushion, Incl in 5

1шт.

7

84191100

SEAT HEADREST

ASSY, Incl, 8, 9

1шт.

8

NSS

NOT SOLD SEPARAT

Headrest, Incl in 7

1шт.

9

84191112

GUIDE

1шт.

10

84283757

ARMREST

LH

1шт.

11

82025111

ARMREST

RH

1шт.

12

71491405

COVER

LH

1шт.

13

84171458

COVER

RH

1шт.
